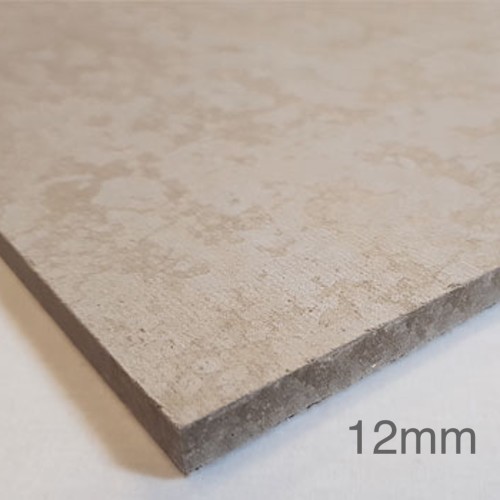

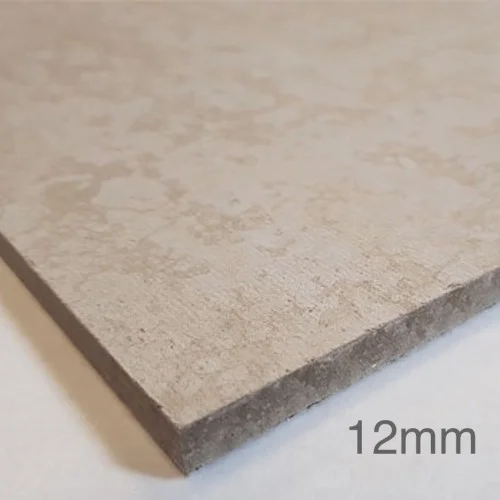

12mm Euroform Versaroc MPA1 Fibre Cement Sheathing Board - 2400mm x 1200mm

12mm Euroform Versaroc MPA1 Fibre Cement Sheathing Board is a high-performance, non-combustible multi-purpose building board specifically engineered as a robust and reliable external sheathing for various frame constructions, including steel frame and timber frame structures. This board provides exceptional fire safety, durability, and weather resistance, forming a critical component of a building's external envelope. Versaroc MPA1 is made of a dense, fibre cement composite and is inherently inorganic and highly stable, making it resistant to moisture, rot, fungi, and insect attack. Its robust composition ensures long-term performance and dimensional stability in varying environmental conditions. Its A1 non-combustible fire rating to BS EN 13501-1, providing the highest level of reaction to fire performance and contributing significantly to the overall fire safety of the building facade. Versaroc MPA1 offers excellent mechanical strength and impact resistance, making it suitable for demanding external applications. It provides a solid substrate for subsequent facade finishes, such as insulation and render systems, rainscreen cladding, or brick slips. The board is also designed to offer good acoustic performance, contributing to reduced noise transmission through the building envelope. Versaroc MPA1 Fibre Cement Sheathing Board is a UKCA marked product, ensuring compliance with relevant UK construction standards.

APPLICATION

• As a robust external sheathing board for steel frame systems and timber frame structures.
• A wide range of systems may be applied over Versaroc MPA1 such as an approved ETICS systems,  terracotta cladding systems, high performance cladding systems and traditional brick coursework

CHARACTERISTICS

• High-density, robust multi-purpose fibre cement composite board.
• High level of reaction to fire performance.
• Suitable for applications exposed to heat, high moisture, and severe frost.
• Inherently inorganic, making it resistant to rot, fungi, and insect attack.
• Provides long-term performance and dimensional stability in varying environmental conditions.
• Offers excellent mechanical strength and high impact resistance.
• Contributes to improved acoustic performance by reducing noise transmission through the building envelope.
• Light grey in colour, relatively smooth to one side with textured reverse.

INSTALLATION

• Versaroc MPA1 boards can typically be installed in either vertical or horizontal orientation.
• Always install the boards in a staggered pattern.
• Avoid creating four-way joints where four board corners meet at one point, as this can lead to stress concentrations and cracking.
• Stagger joints by at least 600mm.
• Use corrosion-resistant, self-drilling, self-tapping screws specifically designed for fibre cement boards and suitable for the framing material.
• Ensure the screw head is of a size appropriate to the board thickness and creates a flush or slightly countersunk finish.
• Screws should penetrate the steel frame by at least 10mm or the timber frame by at least 25mm.
• Screws should be placed no closer than 15mm from the edge of the board.
• The first fixing from any corner (horizontal or vertical edge) should be at least 40mm in from the corner.
• Fixings should be applied along all four edges of each board at approximately 150mm to 200mm centres.
• Fixings in the central area of the board (on intermediate studs) are typically spaced at 300mm to 600mm centres, depending on the design loads and frame spacing.
• For critical or highly loaded areas, increased fixing density might be required.
• Ensure screws are driven flush with or slightly countersunk into the board surface.
• Avoid over-tightening, which can damage the board.
• Leave a minimum 3mm to 5mm gap at all board joints to accommodate thermal expansion and contraction and prevents stress build-up.
• All board joints and internal/external corners must be taped with a compatible, high-performance jointing tape embedded in a thin layer of a compatible jointing compound or adhesive.
• Leave a minimum 3mm to 5mm gap at all board joints (between adjacent boards and at corners). This accommodates thermal expansion and contraction and prevents stress build-up.
• Once the Versaroc MPA1 is installed and joints are treated, the chosen external facade system can be applied according to its specific manufacturer's instructions.

CERIFICATION

• Class A1 Non-Combustible according to BS EN 13501-1:2018.
• Conformity assessed to BS EN 12467:2012+A2:2018 - Fibre-cement flat sheets - Product specification and test methods.
• Highly moisture tolerant and has achieved category A performance to EN12467:2012 + A2:2018
• UKCA Marked.
