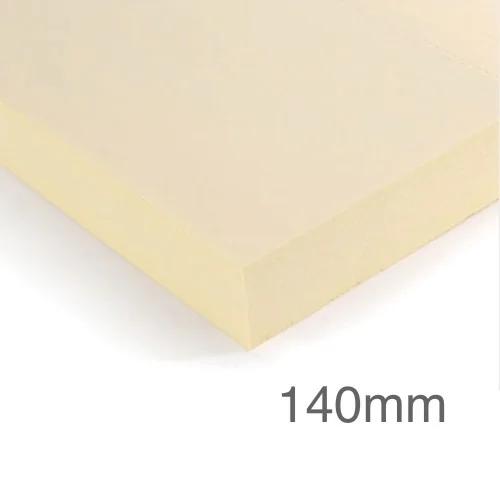

140mm Cellecta Hexatherm XFLOOR 500 Thermal Floor XPS Insulation Board

140mm Cellecta Hexatherm XFLOOR 500 Thermal Floor XPS Insulation Board
140mm Cellecta Hexatherm XFLOOR 500 Thermal Floor XPS Insulation Board
  • Product Code: A1-1613
  • Delivery Time: 2 - 4 days
  • Brand: Cellecta
  • (Tech. support: 01634296677)
  • Model: 600x1250mm - 0.75m2
  • Weight: 4.26kg
Our ratings on 27-01-2026:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

140mm Cellecta Hexatherm XFLOOR 500 Thermal Floor XPS Insulation Board

Width: 600mm
Length: 1250mm
Density: 40kg/m3
Weight/m2: 5.6kg
Weight: 4.26kg
Thermal Conductivity: 0.034W/mK
R-Value: 4.12m2K/W
Compressive Strength: 500kPa

140mm Hexatherm XFLOOR 500 extruded polystyrene thermal insulation boards are designed specifically for domestic, commercial and industrial flooring applications where a high resistance to compression and water absorption is required. XFLOOR floor insulation boards are ideal for a multitude of floor requirements, including basements, above ground bearing concrete floor slabs, and on suspended beam and block floors.

CHARACTERISTICS

  • High compressive strength,
  • Able to withstand heavy point loads,
  • Water_Resistant,
  • Closed cell structure,
  • Suitable for areas in close proximity to water,
  • Ideal for basement floors,
  • Global Warming Potential (GWP) <5,
  • Blown with reclaimed CO2,
  • 100% Recyclable,
  • Fully compliant with Code for Sustainable Home Pol 1 requirements,
  • Excellent life long thermal performance,
  • Super low U-values achievable

APPLICATION

Cellecta Hexatherm XFLOOR 500 is used for basements, above ground bearing concrete floor slabs, and on suspended beam and block floors.

CERTIFICATION

Manufactured in accordance with BS EN 13374 and tested to BS EN 12267
