16.5mm JCW Acoustic Noiseboard 10 - Acoustic Wall Liner - 1200mm x 1200mm

16.5mm JCW Acoustic Noiseboard 10 - Acoustic Wall Liner - 1200mm x 1200mm

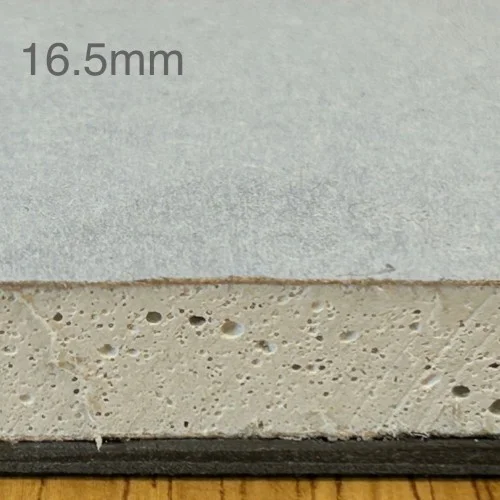

16.5mm JCW Noiseboard 10 is an acoustic wall liner manufactured by laminating a 4mm acoustic resilient layer to a 12.5mm layer of acoustic grade plasterboard to drastically reduce sound transmission. It is a high-performance acoustic overlay improvement board, specifically designed for both new and existing walls. It is composed of an acoustic soundblock plasterboard laminated to a mass loaded 10kg/m² high-density barrier. This ensures excellent soundproofing capabilities, making it suitable for a variety of environments including domestic dwellings, offices, hotels, conference centres, leisure centres, schools, restaurants, and showrooms.

CHARACTERISTICS

• Easy as a quick to install
• High density acoustic barrier
• Can be installed directly onto existing brick, block, or stud walls with simple mechanical frame fixings or self-countersinking screws for timber
• Ideal for home improvement enthusiasts and general tradesmen due to its straightforward fitting process
• Once installed, the boards are ready for skimming and decoration
• Helps in meeting the requirements of Approved Document E for soundproofing

APPLICATION

• New build
• Refurbishments
• Domestic upgrade
• On masonry or stud walls

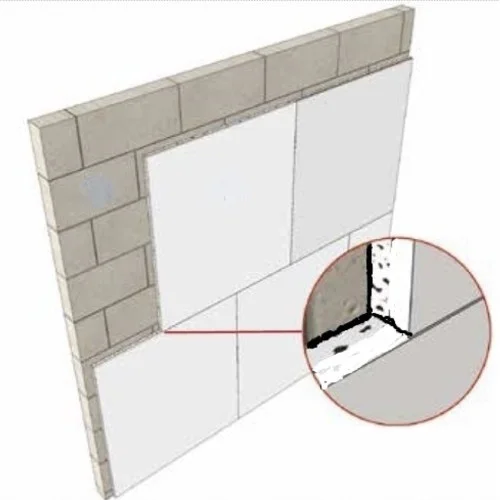

INSTALLATION

• Remove all skirting and coving.
• Ensure the walls are flat and prepared to accept the Noiseboard.
• Fit the first board in the corner, using a 5mm spacer to isolate it from the surrounding floor, ceiling, and walls.
• Seal all gaps with JCW Acoustic Sealant once the final boards are in place.
