170mm EcoTherm EcoVersal PIR Insulation Board - 1200mm x 2400mm

170mm EcoTherm EcoVersal PIR Insulation Board - 1200mm x 2400mm
170mm EcoTherm EcoVersal PIR Insulation Board - 1200mm x 2400mm
170mm EcoTherm EcoVersal PIR Insulation Board - 1200mm x 2400mm
170mm EcoTherm EcoVersal PIR Insulation Board - 1200mm x 2400mm
170mm EcoTherm EcoVersal PIR Insulation Board - 1200mm x 2400mm
  • Product Code: A1-1572
  • Delivery Time: 1 - 5 working days
  • Brand: EcoTherm Insulation
  • (Tech. support: 01268591155)
  • Model and Size: 1200x2400mm - 2.88m2
  • Weight: 16.33kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 28-03-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

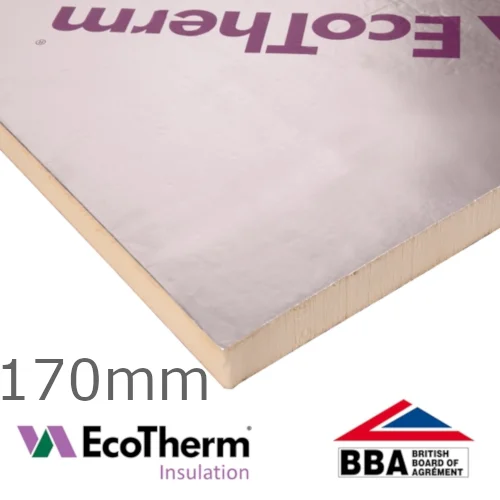

170mm EcoTherm EcoVersal PIR Insulation Board

Width: 1200mm
Length: 2400mm
Density: 33.5kg/m3
Weight/m2: 5.67kg
Weight: 16.33kg
Thermal Conductivity: 0.022W/mK
R-Value: 7.73m2K/W
Compressive Strength: 140kPa
Surface Spread of Flame: Class 1

170mm EcoTherm Eco-Versal is a foil faced universal solution for insulating walls, floors, pitched roofs, dormer cheeks and ceilings. It is ideal for insulating timber frame walls and can also be used to insulate solid walls internally. EcoTherm Eco-Versal comprises a fibre free rigid polyisocyanurate (PIR) insulation core faced with an aluminium foil composite on both sides. Eco-Versal is an insulation board with a thermal conductivity of 0.022 W/mK.

APPLICATION
  • Floors,
  • Solid walls,
  • Pitched roofs,
  • Dormer cheek,
  • Cold flat roofs,
  • Ceilings,
  • Timber frame walls,
  • Room-in-the-roof applications.
CHARACTERISTICS
  • Easy to cut and fit between studs,
  • Lightweight boards will not weigh down the structure,
  • Excellent thermal performance for minimum wall thickness, maximising internal space,
  • The low emissivity surface of the reflective foil facing can cut radiant heat transfer across an adjoining air-space,
  • Resists attack from alkalis, dilute acids, mineral oil and petrol,
  • The fibre free insulation core and facings resists attack by mould and microbial growth and do not provide any food value to vermin,
  • Minimises the risk of interstitial condensation.
  • High water vapour resistance.

CERTIFICATION

EcoTherm PIR Insulation is manufactured under a management system certified to

  • ISO 9001: 2015 (Quality Management Systems. Requirements),
  • ISO 14001: 2015 (Environmental Management Systems. Requirements),
  • ISO 45001: 2018 (Occupational Health and Safety Management Systems. Requirements with guidance for use)
  • ISO 50001: 2018 (Energy Management Systems. Requirements with guidance for use).
