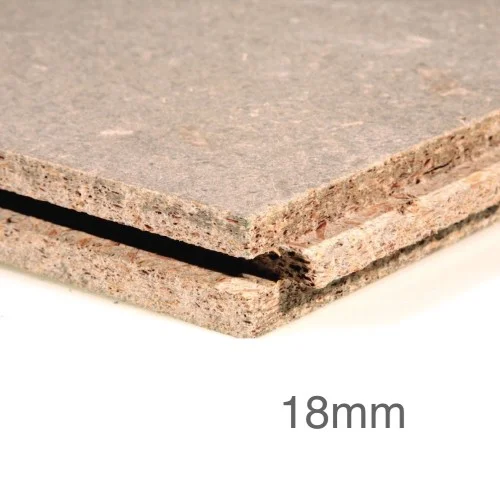

18mm JCW Cement Particle Board for Ceilings and Floors

18mm JCW Cement Particle Board for Ceilings and Floors
18mm JCW Cement Particle Board for Ceilings and Floors
Guide Price: £37.81 (£45.37 inc VAT)
80 or more £34.37 (£41.24 inc VAT)
120 or more £31.52 (£37.82 inc VAT)
160 or more £29.10 (£34.92 inc VAT)
  • Product Code: A1-1972
  • Delivery Time: 2 - 3 working days
  • Brand: JCW
  • (Tech. support: 08453402858)
  • Model and Size: 1200x600mm - 0.72m2
  • Weight: 16.85kg
Our ratings on 28-03-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

18mm JCW Cement Particle Board for Ceilings and Floors

Width: 600mm
Length: 1200mm
Board Coverage: 0.72m2
Weight/m2: 23.4kg
Density: 1300kg/m3
Weight: 16.85kg
Fire Protection (Resistance to Fire): 30minutes
Fire Rating (Reaction to Fire): B(Class 0)

18mm JCW Acoustic Cement Particle Board is a high density T&G overlay acoustic board suitable for floors and ceilings, specially designed to add concentrated mass. Used where there is a requirement for a high performance result in acoustic control and fire retardance. Manufactured from Portland Cement, Water, Wood Fibres and Chemical Additives. As a single board material JCW Cement Particle Board is probably one of the most versatile flat sheet materials available when it comes to application in areas which have to be fire rated.

CHARACTERISTICS
  • Easy to install,
  • High resistance to moisture,
  • High resistance to impact,
  • High acoustic performance,
  • For use internally or externally,
  • Smooth surface.
APPLICATION
  • New build
  • Refurbishments
  • Domestic upgrade
  • On timber floors
INSTALLATION
Ceilings:
  • With exposed joists install dense wool between the joists,
  • Fix resilient bars at 90 degrees to the exposed joists @ 400mm centres
  • Screw fix the JCW Cement Particle Boards onto the resilient bars, ensuring that no screws penetrate through the resilient bar and into the joists.
If fitting over an existing plaster boarded ceiling,
  • Screw fix timber battens @ 90 degrees over the plasterboard layers into the timber joists,
  • Fit dense wool between the new battens,
  • Screw fix the resilient bars at 90 degrees to the timber battens @ 400mm centres,
  • Screw fix the JCW Cement Particle Boards onto the resilient bars, ensuring that no screws penetrate through the resilient bar and into the joists.
Brick & Block Wall:
  • Screw fix vertical timber battens @ 600mm centres onto the existing wall,
  • Fit dense wool between the new battens,
  • Screw fix the resilient bars horizontally to the timber battens @ 400mm centres,
  • Screw fix the JCW Cement Particle Boards onto the resilient bars ensuring that no screws penetrate through the resilient bar and into the battens or structure.
Note:
  • It is essential that the JCW Cement Particle Boards are isolated from the surrounding wall surfaces to achieve the optimum acoustic improvement.
  • By placing JCW Perimeter Edging Strip at the floor, ceiling & wall edges the Cement Board can then be butted up and isolated from structure,
  • Any minor gaps to be sealed using JCW Acoustic Sealant.
  • The T&G board joints should be adhesive bonded using JCW PVA WP adhesive ensure maximum performance.
  • Remove tongues from boards at the wall edges.

CERTIFICATION

JCW Cement Particle board is produced to BS EN 634 Parts 1 & 2 (CE Marking to EN 13986)
