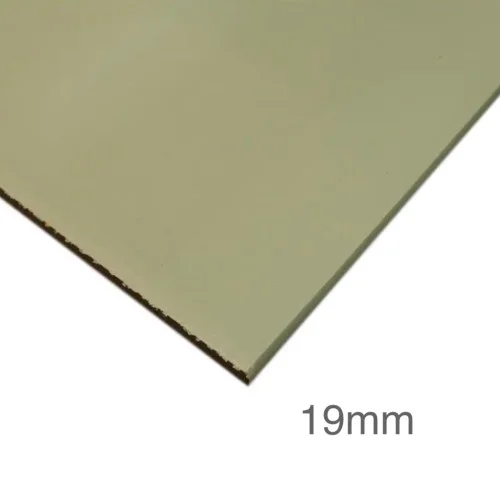

19mm British Gypsum Gyproc Coreboard Plasterboard

19mm British Gypsum Gyproc Coreboard Plasterboard
Guide Price
Rate this product
19mm British Gypsum Gyproc Coreboard Plasterboard
Guide Price: £27.35 (£32.82 inc VAT)
Price per m2: £15.28/m2 (£18.34 inc VAT)
  • Product Code: A1-1350
  • Delivery Time: 2 - 3 working days
  • Brand: British Gypsum (Tech. support: 01159456123)
  • Model: 3000x598mm - 1.79m2
  • Weight: 28.70kg
Our ratings on 21-10-2026:
Google My Business Reviews
4.8 out of 5
Ask question about this product. For price use 'Add to Quote' button.
To GET BEST PRICE for this product only fill below:
Send for Quotation
Need a quote for more products? and continue browsing to find other materials needed.

19mm British Gypsum Gyproc Coreboard Plasterboard

Width: 600mm
Length: 3000mm
Board Coverage: 1.79m2
Weight/m2: 16kg
Thermal Conductivity: 0.240W/mK
R-Value: 0.08m2K/W
Fire Rating (Reaction to Fire): A2(Limited combustibility)
Surface Spread of Flame: Class 1

19mm Gyproc CoreBoard consists of an aerated gypsum core with glass fibre, water repellent and other additives encased in, and firmly bonded to strong paper liners. It is a plasterboard that is suitable for drylining internal surfaces. This plasterboard is certified to BES 6001 achieving a rating of Very Good.

Plasterboard linings provide good fire protection owing to the unique behaviour of the non-combustible gypsum core when subjected to high temperatures. This plasterboard is designated a material of limited combustibility and the surfaces of Gyproc CoreBoard are designated Class 0 for the purposes of National Building Regulations.

APPLICATION
Gyproc CoreBoard is used as the main board in the British Gypsum ShaftWall system to provide fire protection with temporary moisture protection during construction.

INSTALLATION
It is important to observe appropriate health and safety legislation when working on site i.e. personal protective clothing and equipment etc. Manual off-loading of this product should be carried out with care to avoid unnecessary strain. Gyproc CoreBoard may be cut using a plasterboard saw or by scoring with a sharp knife and snapping the board over a straight edge. Holes for switch or socket boxes should be cut out before the boards are fixed using a utility saw or sharp knife.

Fix boards with decorative side out to receive joint treatment or a skim plaster finish. Lightly butt boards together. Never force boards into position. Install fixings not closer than 13mm from cut edges and 10mm from bound edges. Position cut edges to internal angles whenever possible, removing paper burrs with fine sandpaper. Stagger horizontal and vertical board joints between layers by a minimum of 600mm. Locate boards to the centre line of framing where this supports board edges or ends.

PRECAUTIONS
Plasterboard is unsuitable for use in areas subject to continuously damp or humid conditions and must not be used to isolate dampness. They are not suitable for use in temperatures above 49C but can be subjected to freezing conditions without risk of damage. The thermal insulation and ventilation requirements of national Building Regulations aim to reduce the risk of condensation and mould growth in new buildings. However, designers should take care to eliminate all possibility of problems caused by condensation, particularly in refurbishment projects.

CERTIFICATIONS
  • BS 476: Part 6: 1989 Method of test for fire propagation for products.
  • BS 476: Part 7: 1997 Surface spread of flame tests for materials. Class 1 (both sides).
  • EN 520: 2004, A1:2009. Classified without further testing as A2-s1, d0
