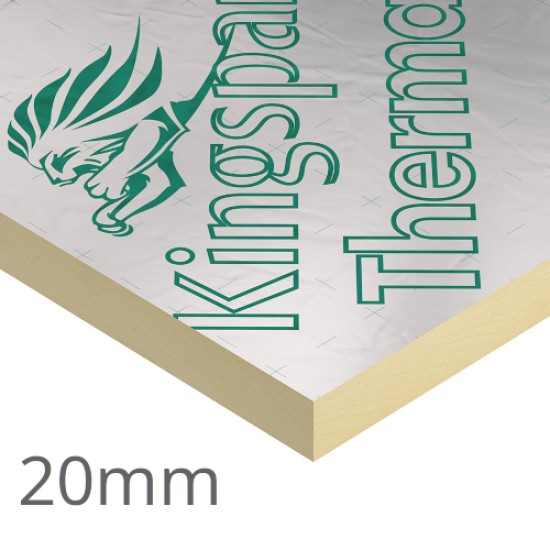

20mm Thermafloor TF70 PIR Insulation Board Kingspan

  • 20mm Thermafloor TF70 PIR Insulation Board Kingspan
  • Product Code: A10-494
  • Brand: Kingspan
    (tech. support: 01544 388 601)
  • Model and Size: TF70 - 1200x2400
  • Board Coverage: 2.88m2
  • Delivery Time: 1 - 2 days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.

  • Price: £29.27 (£35.12 inc VAT)

    Price per m2: £10.16/m2 (£12.19/m2 inc VAT)


    • 10 or more £28.07 (£33.68 inc VAT)
    • 20 or more £27.61 (£33.13 inc VAT)
    • 30 or more £26.93 (£32.32 inc VAT)
= m2
other thicknesses
Price: £32.42 (£38.90 inc VAT)
show quantity discounts
= m2
Price: £31.13 (£37.36 inc VAT)
show quantity discounts
= m2
Price: £39.57 (£47.48 inc VAT)
show quantity discounts
= m2
Price: £46.92 (£56.30 inc VAT)
show quantity discounts
= m2
Price: £54.43 (£65.32 inc VAT)
show quantity discounts
= m2
Price: £59.06 (£70.87 inc VAT)
show quantity discounts
= m2
Price: £68.07 (£81.68 inc VAT)
show quantity discounts
= m2
Price: £67.03 (£80.44 inc VAT)
show quantity discounts
= m2
Price: £88.20 (£105.84 inc VAT)
show quantity discounts
= m2
Price: £91.91 (£110.29 inc VAT)
show quantity discounts
= m2
Price: £97.99 (£117.59 inc VAT)
show quantity discounts
= m2
Guide Price: £288.35 (£346.02 inc VAT)
show quantity discounts
= m2
Price: £153.62 (£184.34 inc VAT)
show quantity discounts
= m2

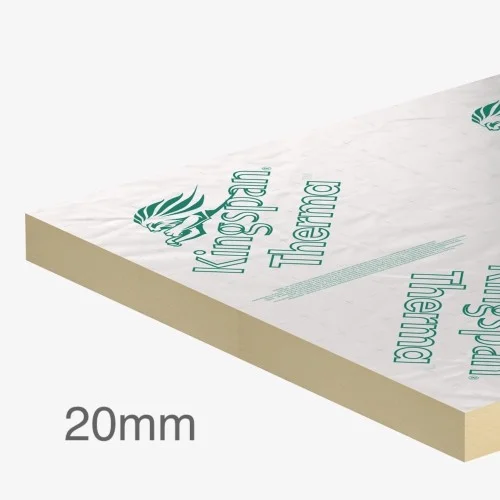

20mm Thermafloor TF70 PIR Insulation Board Kingspan

Thickness: 20mm
Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 32kg/m3
Weight/m2: 0.64kg
Weight: 1.84kg
Thermal Conductivity: 0.022W/mK
R-Value: 0.9m2K/W
Compressive Strength: 140kPa
Water vapour resistivity: 100
Fire Rating (Reaction to Fire): E

20mm Kingspan TF70 comprises a high performance rigid thermoset insulation core faced on both sides with a low emissivity composite foil facing. The product is manufactured with a blowing agent that has zero Ozone Depletion Potential(ODP) and low Global Warming Potential (GWP).

CHARACTERISTICS
  • High performance rigid thermoset insulation
  • No requirements for a vapour control layer
  • Quick response floor heating - prevents heat loss through 'heat sump'
  • Minimises the cost of related items - soil removal, DPM's service connections
  • Resistant to passage of water vapour
  • Easy to handle and install
  • Non-deleterious material
  • Manufactured with a blowing agent that has zero ODP and low GW
APPLICATIONS
  • Solid Concrete Ground Based Floor
  • Beam and Dense Block Floor
  • Suspended Timber Ground Floor
  • Timber Floor on Battens
CERTIFFICATION
Kingspan TF70 is manufactured to the highest standards under a management system under a quality control system approved to:
  • BS / I.S. EN ISO 9001: 2015 (Quality Management Systems. Requirements)
  • BS / I.S. EN ISO 14001: 2015 (Environmental Management Systems. Requirements)
  • BS / I.S OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements)

Kingspan TF70 is manufactured to the highest standards under a quality control system in accordance with draft BS 4841-6
