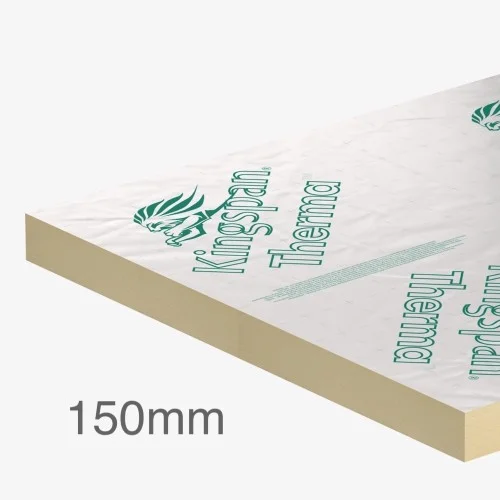

150mm Thermafloor TF70 PIR Insulation Board Kingspan

150mm Thermafloor TF70 PIR Insulation Board Kingspan
150mm Thermafloor TF70 PIR Insulation Board Kingspan
Price: £231.67 (£278.00 inc VAT)
Price per m2: £80.44/m2 (£96.53 inc VAT)
10 or more £227.87 (£273.44 inc VAT)
20 or more £224.08 (£268.90 inc VAT)
30 or more £218.37 (£262.04 inc VAT)
  • Product Code: A1-511
  • Delivery Time: 1 - 5 working days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Kingspan
  • (Tech. support: 01544388601)
  • Model and Size: TF70 - 1200x2400
  • Weight: 13.82kg
Our ratings on 17-04-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

150mm Thermafloor TF70 PIR Insulation Board Kingspan

Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 32kg/m3
Weight/m2: 4.8kg
Weight: 13.82kg
Thermal Conductivity: 0.022W/mK
R-Value: 6.82m2K/W
Compressive Strength: 140kPa
Fire Rating (Reaction to Fire): F

150mm Kingspan TF70 comprises a high performance rigid thermoset insulation core faced on both sides with a low emissivity composite foil facing.

CHARACTERISTICS
  • High performance rigid thermoset insulation
  • No requirements for a vapour control layer
  • Quick response floor heating - prevents heat loss through 'heat sump'
  • Minimises the cost of related items - soil removal, DPM's service connections
  • Resistant to passage of water vapour
  • Easy to handle and install
  • Non-deleterious material
APPLICATIONS
  • Solid Concrete Ground Based Floor
  • Beam and Dense Block Floor
  • Suspended Timber Ground Floor
  • Timber Floor on Battens
CERTIFFICATION
Kingspan TF70 is manufactured to the highest standards under a management system under a quality control system approved to:
  • BS / I.S. EN ISO 9001: 2015 (Quality Management Systems. Requirements)
  • BS / I.S. EN ISO 14001: 2015 (Environmental Management Systems. Requirements)
  • BS / I.S OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements)

Kingspan TF70 is manufactured to the highest standards under a quality control system in accordance with draft BS 4841-6
