50mm Kingspan Thermaroof TR24 - (pack of 6)
Price: £78.64 (£94.37 inc VAT)
Price per m2: £18.20/m2 (£21.84 inc VAT)
  • Product Code: A1-3036
  • Delivery Time: 3 - 5 days
  • Brand: Kingspan (Tech. support: 01544388601)
  • Model: 1200x600mm - 4.32m2
  • Weight: 11.23kg
Our ratings on 21-10-2026:
Google My Business Reviews
4.8 out of 5

50mm Kingspan Thermaroof TR24 - (pack of 6)

Width: 600mm
Length: 1200mm
Pack Quantity: 6
Density: 32kg/m3
Weight/m2: 2.6kg
Weight: 11.23kg
Thermal Conductivity: 0.027W/mK
R-Value: 1.85m2K/W
Compressive Strength: 150kPa

50mm Kingspan Thermaroof TR24 is a rigid insulation board used for flat roof insulation, consisting of a rigid thermoset insulation core, covered with a glass tissue coated with bitumen. Its upper surface is finished with a thermo fusible polypropylene fleece, while the lower surface is covered with mineralized glass tissue. When the product is installed, the flat roof fall should be steep enough and smooth to avoid rainwater pools. It is especially designed to work with most fully bonded torch applied multi-layer bituminous waterproofing. It is applicable in both new build and refurbishment projects, though it should be installed over a vapor control layer (unless used jointly with sealed metal deck) in new build projects while existing bituminous waterproofing membrane can be used as a vapor control layer, if not, this layer should also be added in refurbishment projects.

APPLICATION

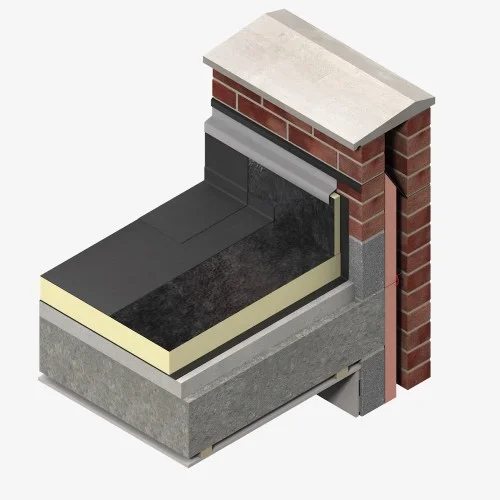

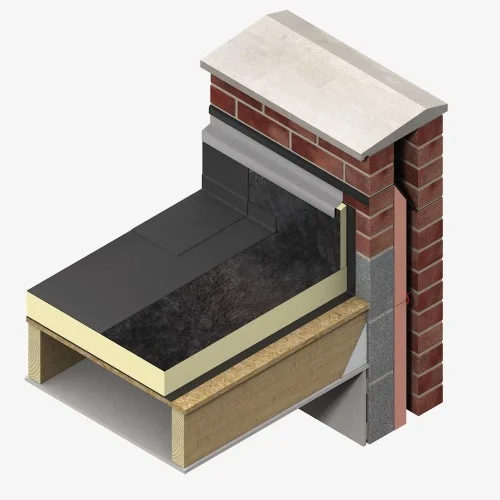

Kingspan Thermaroof TR24 is used for insulating flat roofs waterproofed with fully bonded torch applied multi-layer bituminous waterproofing, including installing it over:
  • concrete decks

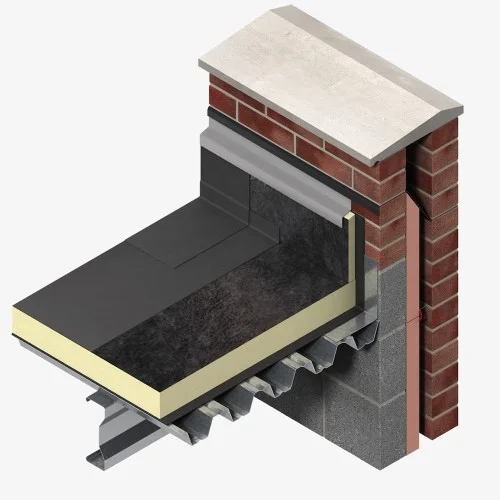

  • metal decks
  • existing flat roofs
  • 8-12 Suretwist fixings are needed per 1200x2400mm board depending on joist spacing for mechanical fixing.

CHARACTERISTICS

  • Safe and easy to handle and install
  • Water vapour resistant
  • Very durable when properly installed
  • Mould and microbial growth resistant
  • Unaffected by air filtration
  • High-performance rigid insulation
  • Highly compatible with most torch applied waterproofing systems
  • Applicable in new build and refurbishment projects

CERTIFICATION

Kingspan Thermaroof TR24 is manufactured under a management system certified to:
  • ISO 9001: 2015 (Quality Management System),
  • ISO 14001: 2015 (Environmental Management System),
  • ISO 45001: 2018 (Occupational Health and Safety Management System),
  • ISO 50001: 2018 (Energy Management System)
  • ISO 37301: 2021 (Compliance Management System).
