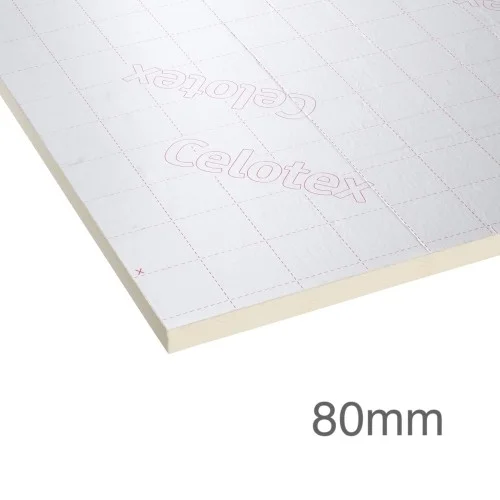

80mm Celotex CW4000 Rigid PIR Cavity Insulation Board (pack of 6)

80mm Celotex CW4000 Rigid PIR Cavity Insulation Board (pack of 6)
  • Product Code: A1-165
  • Delivery Time: Discontinued
  • Brand: Celotex (Tech. support: 01473820850)
  • Model: 1200mm x 450mm - 3.24m2
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 16-11-2026:
Google My Business Reviews
4.8 out of 5
To GET BEST PRICE for this product only fill below:
Need a quote for more products? and continue browsing to find other materials needed.

80mm Celotex CW4000 Rigid PIR Cavity Insulation Board (pack of 6)

Width: 450mm
Length: 1200mm
Pack Coverage: 3.24m2
Weight/m2: 4.59kg
Thermal Conductivity: 0.023W/mK
R-Value: 3.6m2K/W
Compressive Strength: 120kPa
Surface Spread of Flame: Class 1

80mm Celotex CW4000 is an insulation board aimed specifically at partial fill cavity wall applications. It comprises a polyisocyanurate rigid foam insulation core, with a thermal conductivity of 0.022 W/mK and low emissivity aluminium foil facings on both sides. CW4000 is manufactured from rigid polyisocyanurate (PIR) using a blend of blowing agents that have zero ozone depletion potential (zero ODP) and low global warming potential (GWP).

Note: Would be known as CW3000 from January 2018.

APPLICATION

Celotex CW4000 is specifically for use in partial-fill cavity wall applications.

cw4000 isntall

CHARACTERISTICS
  • Is easy to fit between wall ties using cavity tie clips for retention
  • Comes in thicknesses ranging from 25mm-100mm
  • Comes in conveniently sized boards for installation between cavity wall ties
  • Includes low emissivity foil facings giving improved thermal insulation performance within cavity air spaces
  • Has excellent dimensional stability
  • Provides reliable long term energy savings for buildings
CERTIFICATION
  • The insulation component of Celotex CW4000 is A+ rated when compared to the BRE Green Guide 2008
  • Celotex CW4000 is CFC/HCFC free with zero ozone depletion potential (ODP) and low global warming potential (GWP)
  • Celotex CW4000 received CE marking compliance to BS EN 13165:2001
  • The board is manufactured in accordance with quality management systems with BS EN ISO 9001:2000 by Celotex Limited
