PlastiClad Aluminium Chair Style Horizontal Joint Trim AL/CH8 - For Any 8mm Panel - 3055mm Length
PlastiClad Aluminium Chair Style Horizontal Joint Trim AL/CH8 - For Any 8mm Panel - 3055mm Length
- Product Code: A1-6754
- Delivery Time: 7 - 10 days
- Brand: Plastestrip (Tech. support: 0172674771)
- Model: AL/CH8
Our ratings on 13-04-2026:
4.8 out of 5
PlastiClad Aluminium Chair Style Horizontal Joint Trim AL/CH8- For Any 8mm Panel - 3055mm Length

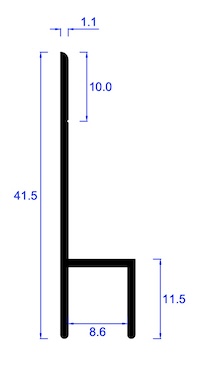

Length: 3055mm
Thickness: 1.1mm

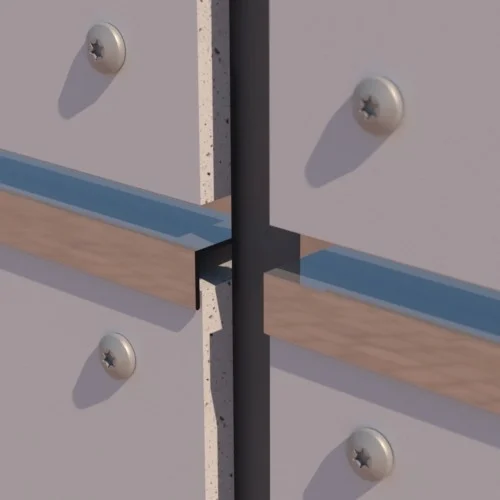

PlastiClad Aluminium Chair Style Horizontal Joint Trim AL/CH8 - For Any 8mm Panel (often simply called a "Chair Joint") is a specialised architectural profile used to transition between two horizontal rows of cladding panels. Its unique stepped design is engineered to provide both a visual break and a superior weather-shedding mechanism.
This trim is extruded from high-grade aluminium and is distinguished by the manufacturer’s rigorous finishing process:
- Made from 6063 - T6 Aluminium.
- Unlike many standard trims on the market, Plasticlad ensures a high quality and durable finish by applying a polyester powder coating to all its aluminium profiles and fixings. This process provides a tougher, longer-lasting surface than standard paint or anodising, offering exceptional resistance to scratching, fading, and chemical degradation.

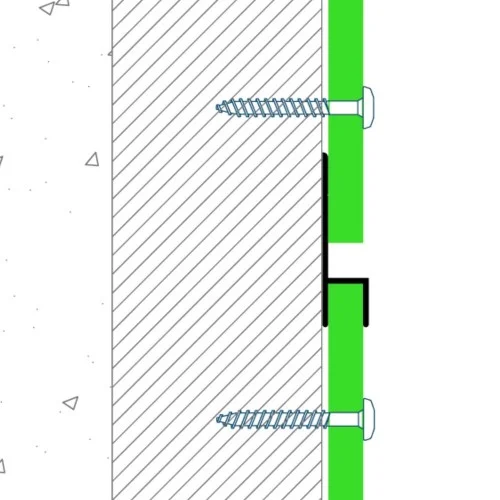

- The profile features a distinctive offset or "stepped" shape. The back of the "chair" is fixed to the timber battens behind the upper panel, while the "seat" extends forward to provide a clean horizontal ledge that caps the top of the lower panel.
- Available in 28 RAL colours.
- All stock powders are 80 – 85% gloss value also known as full gloss.
Plastestrip-Aluminium-6063-2-data-sheet.pdf
Brand: Plastestrip
Model: ST/TH/30/30/185 - 3m length
Delivery Time: 7 - 10 days
Plastestrip Galvanised Steel Top Hat Profile - ST/TH/30/30/185 features a raised central section with two fixing flanges. This is often preferred when the installer needs to maintain a specific cavity depth or requires more surface area for fixing. These horizontal support profiles act as a str..
Brand: Plastestrip
Model: G-C06602220.80.30
Delivery Time: 7 - 10 days
FastFrame Aluminium Standard Secret Fix Carrier Bracket for Fischer Tergo Anchors - G-C06602220.80.30 is a discrete aluminium extrusion designed to provide a secure, adjustable, and invisible mechanical connection. It is typically used with high-end facade materials such as High-Pressure Laminate (H..
Brand: Plastestrip
Model: AL/610
Delivery Time: 7 - 10 days
PlastiClad Aluminium H style Vertical Joint AL/610 - For Any 10mm Panel is a high-performance connecting profile used to join two cladding panels on a continuous flat run. Its name is derived from its cross-section, which forms a perfect "H" shape, providing two deep, back-to-back channels to receiv..
Brand: Plastestrip
Model: RIVETS/14/23
Delivery Time: 1-3 working days
Plastestrip 16mm Head Aluminium Rivets for fixing cladding panels to aluminium support rails. Can be powder coated to any colour. Stainless steel mandrel. Big head for better load distribution, which is an advantage for fastening of soft materials. 23mm length
Available rivet sizes and dimens..
Brand: Plastestrip
Model: FF FIX/BR/220
Delivery Time: 7 - 10 days
220mm Plastestrip FastFrame Aluminium Single Helping Hand Bracket - FF FIX/BR/220 is the fundamental structural component of the Plastestrip rainscreen support system. It acts as the primary "anchor" between the building's structural substrate (be it masonry, concrete, or steel frame) and the vertic..
Brand: Plastestrip
Model: AL/VENT/30/50
Delivery Time: 7 - 10 days
PlastiClad Aluminium Vent Trim to Close 30-50mm Cavity AL/VENT/30/50 is a precision-punched architectural trim designed to maintain a continuous air path behind cladding panels while simultaneously acting as a physical barrier against pests. These profiles are typically installed at the base of..
