11mm Long Plasticlad Stainless Steel TU Fastener for HPL Panels - TUF-S-6x11-A4 - pack of 250
11mm Long Plasticlad Stainless Steel TU Fastener for HPL Panels - TUF-S-6x11-A4 - pack of 250
- Product Code: A1-6778
- Delivery Time: 7 - 10 days
- Brand: Plastestrip (Tech. support: 0172674771)
- Model: TUF-S-6x11-A4
Our ratings on 12-06-2026:
4.8 out of 5
11mm Long Plasticlad Stainless Steel TU Fastener for HPL Panels - TUF-S-6x11-A4 - pack of 250
Length: 11mm
Pack Quantity: 250

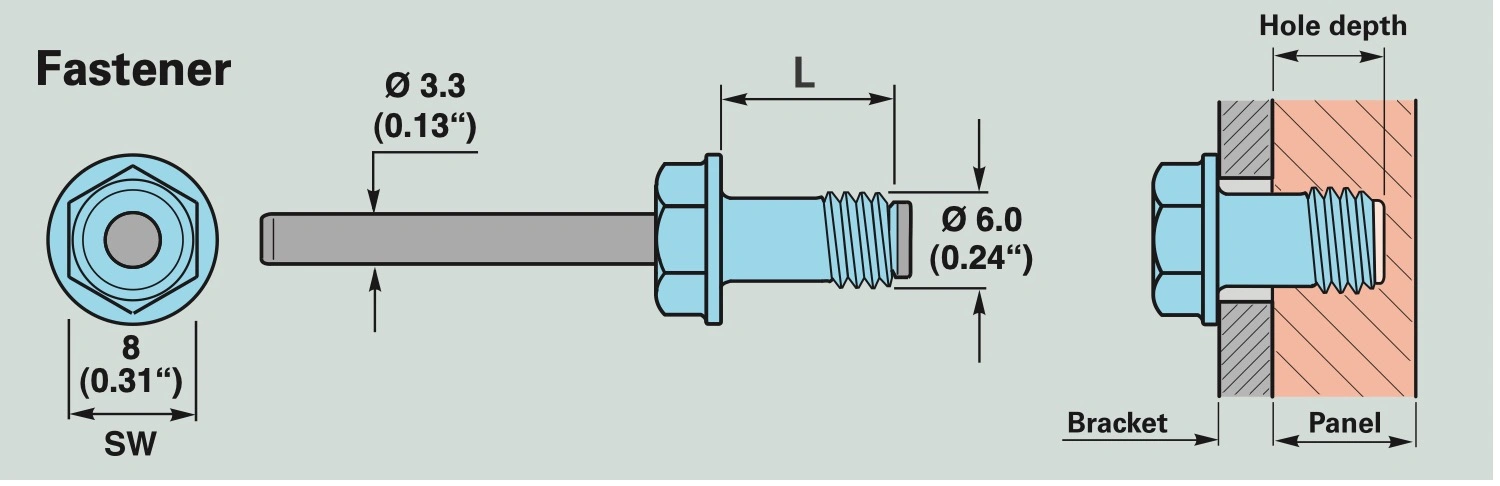

11mm Long Plasticlad Stainless Steel TU Fastener for HPL Panels is a high-performance, blind-fix mechanical anchor designed for the "secret fixing" of High-Pressure Laminate (HPL) and fibre cement cladding panels. These fasteners are installed into the rear of the panel, leaving the front decorative face completely untouched and free of visible fixings. The 11mm length is specifically engineered for 12mm thick cladding panels, where a secure mechanical grip is required without the risk of the fastener piercing or telegraphing through the front surface.
CHARACTERISTICS
- Manufactured from A4 (316) stainless steel to provide the highest level of corrosion resistance, making it suitable for even the most demanding coastal environments.
- Enables a "hidden" fixing system, providing a sleek, uninterrupted facade that is highly sought after by architects for modern commercial and residential projects.
- The fastener works by expanding within a pre-drilled blind hole. This creates a secure, vibration-proof friction fit that does not rely on adhesives, which can degrade over time.

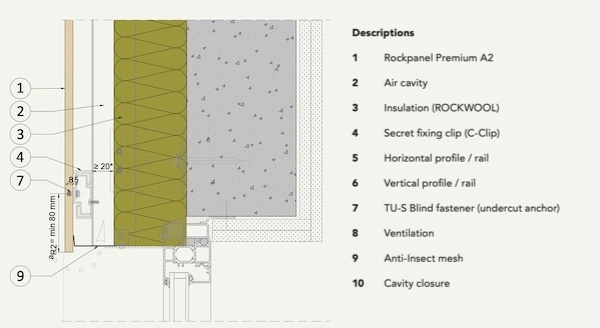

Typical installation detail
Brand: Plastestrip
Model: FIX/ANG/HD/60/40 - 3m length
Delivery Time: 7 - 10 days
Plastestrip L-Rail is a high-strength, extruded aluminium profile used as a vertical support member in rainscreen cladding sub-frames. Its primary function is to provide additional points of contact behind a cladding panel, ensuring the facade remains rigid and resistant to wind pressure without the..
Brand: Plastestrip
Model: ST/TH/30/30/185 - 3m length
Delivery Time: 7 - 10 days
Plastestrip Galvanised Steel Top Hat Profile - ST/TH/30/30/185 features a raised central section with two fixing flanges. This is often preferred when the installer needs to maintain a specific cavity depth or requires more surface area for fixing. These horizontal support profiles act as a str..
Brand: Plastestrip
Model: AL/AD/6/11
Delivery Time: 7 - 10 days
PlastiClad Aluminium Top Drip Trim AL/AD/6/11 is a precision-engineered horizontal profile designed specifically to cap and protect the upper horizontal edges of external façade panels. It is compatible with a wide range of panel thicknesses, typically from 5mm to 12mm, providing a robust weather-se..
Brand: Plastestrip
Model: FF FIX/BRD/160
Delivery Time: 7 - 10 days
160mm Plastestrip FastFrame Aluminium Double Helping Hand Bracket - FF FIX/BRD/160 is the primary load-bearing component within the Plastestrip sub-frame system. While the single bracket is typically used for intermediate wind-load support, the double bracket is engineered to act as the Fixed P..
Brand: Plastestrip
Model: AL/610
Delivery Time: 7 - 10 days
PlastiClad Aluminium H style Vertical Joint AL/610 - For Any 10mm Panel is a high-performance connecting profile used to join two cladding panels on a continuous flat run. Its name is derived from its cross-section, which forms a perfect "H" shape, providing two deep, back-to-back channels to receiv..
Brand: Plastestrip
Model: 090/50N
Delivery Time: 2 - 5 working days
50mm Anti-Rattle PVC Foam Gasket Tape is a high-performance, self-adhesive solution designed specifically for use with aluminium support rails in rainscreen cladding systems. It serves as both a functional dampener and an aesthetic masking layer, ensuring a professional finish for modern facades.CHA..
£39.23
£47.08 inc VAT
