PlastiClad Aluminium Starter Trim AL/ST40 for Click-in Cladding Systems - 3055mm Length
PlastiClad Aluminium Starter Trim AL/ST40 for Click-in Cladding Systems - 3055mm Length
- Product Code: A1-6761
- Delivery Time: 7 - 10 days
- Brand: Plastestrip (Tech. support: 0172674771)
- Model: AL/ST40
Our ratings on 14-10-2026:
4.8 out of 5
PlastiClad Aluminium Starter Trim AL/ST40 for Click-in Cladding Systems - 3055mm Length

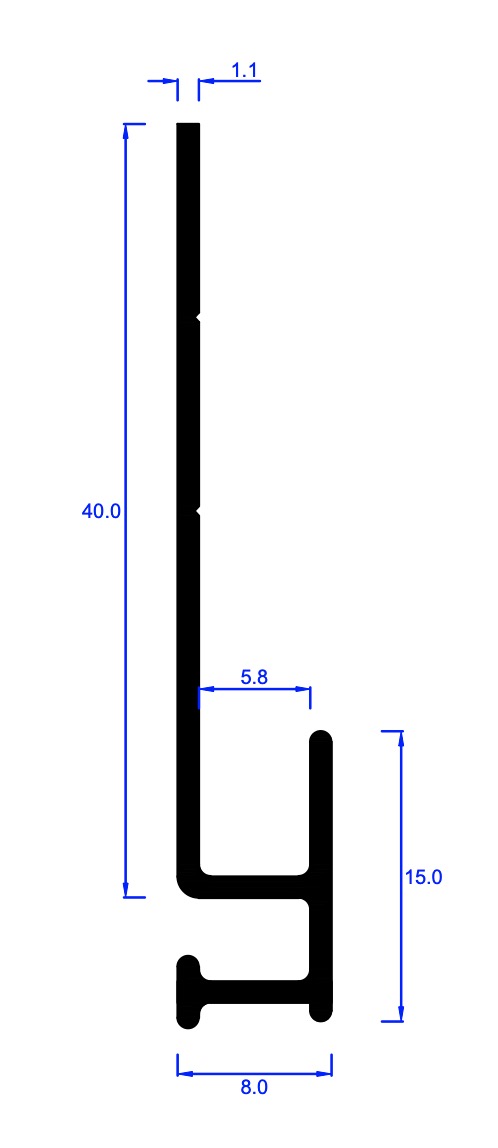

Length: 3055mm
Thickness: 1.1mm

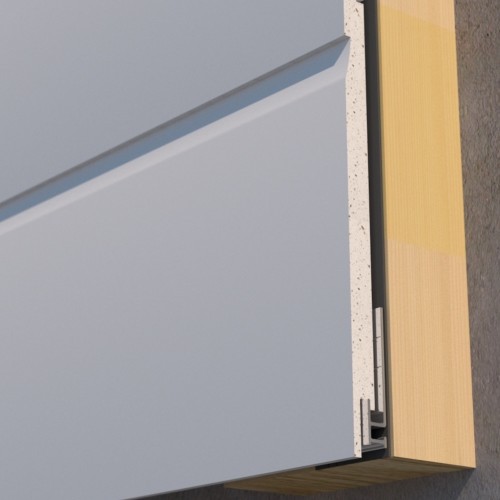

PlastiClad Aluminium Starter Trim AL/ST40 is a high-specification base profile designed to initiate the installation of interlocking cladding panels. This profile features a specific "click-lock" geometry that mirrors the engagement mechanism of the cladding panels, ensuring a secure and perfectly level starting point for the entire façade.
This trim is extruded from high-grade aluminium and is distinguished by the manufacturer’s rigorous finishing process:
- Made from 6063 T6 Aluminium.
- Unlike many standard trims on the market, Plasticlad ensures a high quality and durable finish by applying a polyester powder coating to all its aluminium profiles and fixings. This process provides a tougher, longer-lasting surface than standard paint or anodising, offering exceptional resistance to scratching, fading, and chemical degradation.

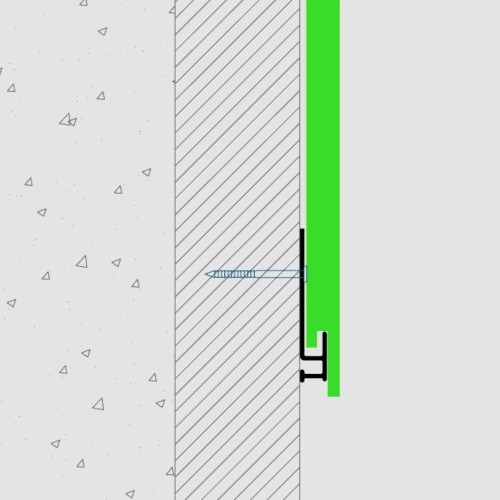

- The profile is designed with a specific hook or groove detail that allows the first cladding panel to "click" or "snap" into place. This ensures a mechanical bond that is far more secure than simply resting a board on a ledge.
- Available in 28 RAL colours.
- All stock powders are 80 – 85% gloss value also known as full gloss.
Plastestrip-Aluminium-6063-2-data-sheet.pdf
