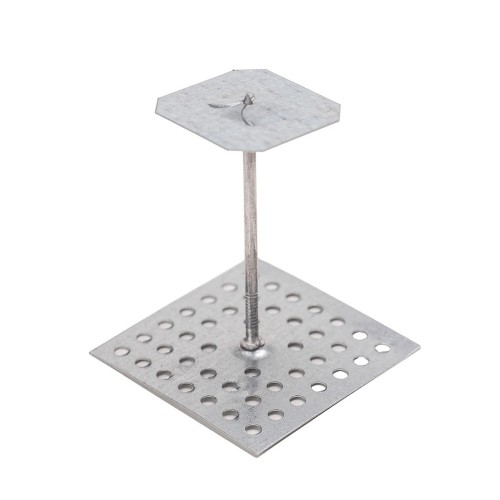

Siderise Perforated Insulation Pin with Washer (Box of 500)

Siderise Perforated Insulation Pin with Washer is a robust and reliable mechanical fixing system designed for securely attaching insulation materials to various substrates. This essential accessory ensures that insulation slabs, mats, or blankets remain firmly in place, particularly in vertical or overhead applications, where gravity and air movement could compromise their stability. The pin features a sharp, pointed tip for easy penetration of insulation and a wide perforated base that allows for effective adhesion when used with appropriate adhesives. Once the insulation is impaled onto the pin, the accompanying self-locking washer is pushed firmly over the pin's shaft, holding the insulation securely against the substrate. The excess pin length can then be easily trimmed or bent over. The perforated base of the pin offers an excellent surface area for bonding with various insulation adhesives, providing a strong initial grip while the adhesive cures, or serving as a primary fixing method. This system is particularly vital in applications such as ductwork, plant room linings, and internal wall insulation where a long-lasting and secure mechanical bond is required to maintain the insulation's performance and integrity over time.

• Length of the pin: 62mm
• Perforated base dimensions: 50mm x 50mm
• Washer dimension: 30mm x 32mm

CHARACTERISTICS

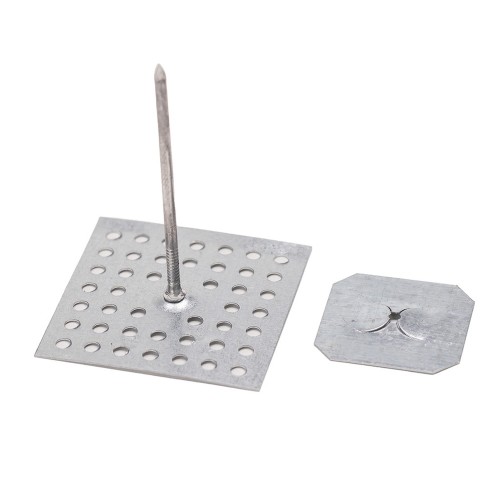

• Consists of two main parts: a perforated insulation pin and a self-locking washer.
• Sharp, pointed tip facilitates easy penetration of insulation materials.
• The wide, perforated base designed for optimal adhesion, allowing the adhesive to flow through and around, creating a strong bond.
• The washer is designed to push over the pin and securely lock into place, holding the insulation.

APPLICATION

• Suitable for attaching a wide range of insulation types (slabs, mats, blankets) to various substrates.

INSTALLATION

• The pin is adhered to the substrate (or sometimes mechanically fixed).
• Insulation is impaled onto the pin.
• The washer is pressed onto the pin shaft to secure the insulation.
• Excess pin length can be trimmed or bent over.
