230mm Ancon Staifix Cavity Starter Tie with Plug - pack of 100
Price: £295.11 (£354.13 inc VAT)
  • Product Code: A1-6809
  • Delivery Time: 2 - 3 working days
  • Brand: Ancon (Tech. support: : +44(0)1142381238)
  • Model: STRT230BOX
Our ratings on 21-10-2026:
Google My Business Reviews
4.8 out of 5

230mm Ancon Staifix Cavity Starter Tie with Plug - pack of 100

Length: 230mm
Pack Quantity: 100

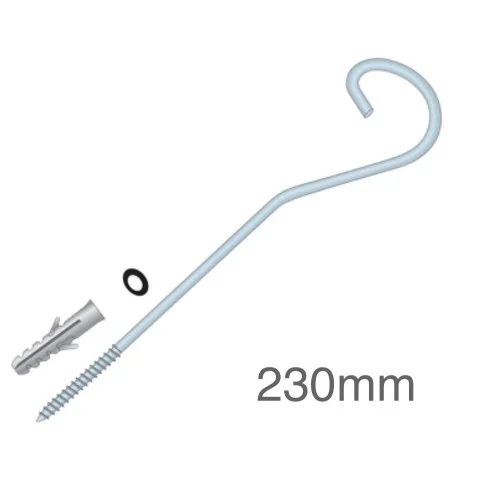

230mm Ancon Staifix Cavity Starter Tie is a screw‑in wall tie designed to simplify the construction of a new inner leaf of blockwork within an existing structure. It provides a secure and reliable method of tying new masonry to existing walls without the need for jointing, making it particularly suitable for applications such as extensions, barn conversions and internal alterations. Manufactured from stainless steel for long‑term durability, the tie is supplied complete with an 8mm nylon plug and a neoprene O‑ring to ensure a firm and weather‑resistant fixing. Once installed, it offers a stable connection across a range of cavity widths to suit cavities from 50mm up to 120mm. This tie is widely used by builders for its simplicity, reliability and compatibility with NHBC standards, making it a trusted choice for both domestic and commercial masonry work.

INSTALLATION

  • 8mm holes are drilled into the existing wall at a slight upward angle, plugs are inserted, and the ties are screwed into place at recommended vertical centres of 225 mm. When correctly embedded 65–85mm into the mortar joint of the new leaf, the system provides a robust and compliant structural link.
Ancon CFS130 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Brand: Ancon Model: CFS130
Delivery Time: 2 - 5 working days
Ancon CFS130 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Ancon CFS130 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used. Using the cha..
Ancon CFS120 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Brand: Ancon Model: CFS120
Delivery Time: 2 - 5 working days
Ancon CFS120 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Ancon CFS120 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used. Using the cha..
200mm Ancon 63 Resin/Mechanical Wall Tie - RM63 Remedial Wall Tie - for 35-60mm cavities
Brand: Ancon Model: 200mm
Delivery Time: 2 - 3 working days
200mm Ancon 63 Resin/Mechanical Wall Tie - RM63 Remedial Wall Tie - for 35-60mm cavities
200mm Ancon 63 Resin/Mechanical Wall Tie is a masonry remedial wall tie for use for tying together two leaves of solid walls. This RM63 tie has mechanical expanders at one end and a grooved end at the other end to be fixed to the inner leaf that is perforated, or of low-density or friable ..
315mm Ancon Teplo-R Wall Tie - Remedial Wall Tie - for 175mm Cavity
Brand: Ancon Model: 315mm
Delivery Time: 2 - 3 working days
315mm Ancon Teplo-R Wall Tie - Remedial Wall Tie - for 175mm Cavity
315mm Ancon Teplo-R Wall Tie is a remedial wall tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It is a plain-ended basalt fibre wall ..
500mm Ancon Teplo-BF-3 Wall Tie - Basic Wall Tie Type 3
Guide Price
Brand: Ancon Model: 500mm
Delivery Time: 3 - 5 days
500mm Ancon Teplo-BF-3 Wall Tie - Basic Wall Tie Type 3
500mm Ancon Teplo-BF-3 Wall Tie is a smart black general purpose composite type 3 wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-3 has specialised moulded safety ends which offer improved ..
Guide Price: £4.68
£5.62 inc VAT
220mm Ancon Staifix Resin/Resin Wall Tie - RR Remedial Wall Tie - for 81-100mm cavities - 100nos
Brand: Ancon Model: 220mm
Delivery Time: 2 - 3 working days
220mm Ancon Staifix Resin/Resin Wall Tie - RR Remedial Wall Tie - for 81-100mm cavities - 100nos
220mm Staifix Resin/Resin Wall Tie is a masonry remedial wall tie for use for tying together two leaves of solid walls. This RR tie is used where mechanical expanders are unusable. Resin is added to both ends. A plastic sieve can be used to retain resin and is particularly useful in perfor..
