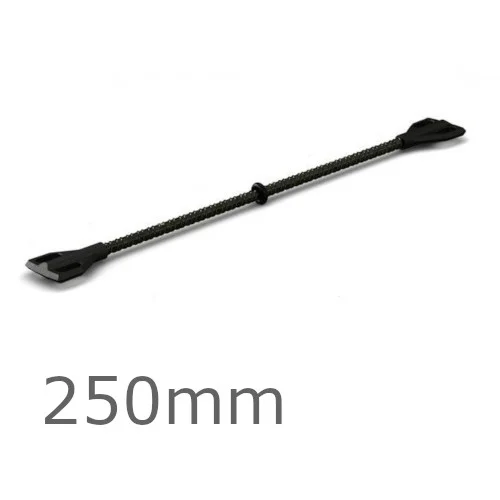

250mm Ancon Teplo-BF-4 Wall Tie - Light Duty Type 4

250mm Ancon Teplo-BF-4 Wall Tie - Light Duty Type 4
Guide Price
250mm Ancon Teplo-BF-4 Wall Tie - Light Duty Type 4
Guide Price: £1.21 (£1.45 inc VAT)
  • Product Code: A1-3671
  • Delivery Time: 3 - 5 days
  • Brand: Ancon
  • (Tech. support: : +44(0)1142381238)
  • Model and Size: 250mm
Our ratings on 22-07-2025:
Google My Business Reviews
4.8 out of 5
Show other sizes

250mm Ancon Teplo-BF-4 Wall Tie - Light Duty Type 4

Length: 250mm
Cavity width: 101-125mm

250mm Ancon Teplo-BF-4 Wall Tie is a smart black composite light duty type 4 wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-4 has specialised moulded safety ends which offer improved buildability and mortar bond strength. The enhanced bond makes it ideal for use in slow drying lime mortars. The Teplo-BF-4 range is BBA approved and can be used in line with NHBC standards. This tie suitable Light duty wall tie suitable for box-form domestic dwellings with leaves of similar thickness. Suitable for flat sites where the basic wind speed is up to 31m/s and altitude  is not more than 150m above sea level. This tie can be used only up to 15m height. Recommended design embedment of the tie is between 62.5mm and 75mm in each leaf.



Fixing density

  • 2.5 ties/m2
  • 3-4 ties/m2
  • at unbonded edges

CHARACTERISTICS
  • Masonry-to-masonry wall tie,
  • Can be used up to 10m height,
  • Ligt duty type 4 wall tie,
  • Suitable for cavities of 101-125 mm,
  • Movable 'O' ring drip to prevent water crossing the cavity,
  • BBA Approved and can be used in line with NHBC standards.
