Ancon Teplo-BF-CT-25/150 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Ancon Teplo-BF-CT-25/150 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Length: 150mm
Open Cavity: 85-109mmmm

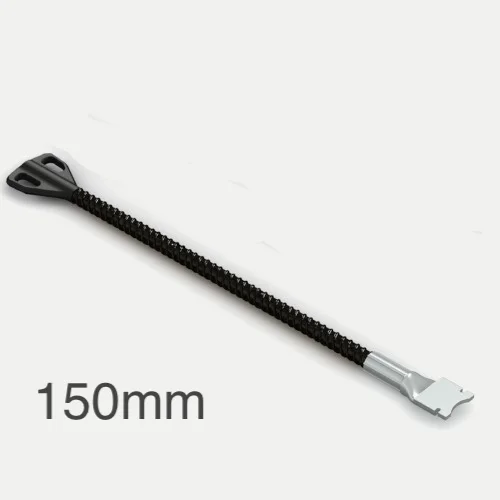

Ancon Teplo-BF-CT-25/150 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 85-109mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations to BS EN ISO 6946, minimising insulation thickness and wall footprint. The unique ribbed shank of this tie provides an effective moisture drip. This channel tie has a profiled stainless steel head at one end shaped to suit Ancon 25/14 channel and is placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint. The moulded safety end is placed into the outer leaf masonry bed joint.



BENEFITS
  • Quick installation,
  • Avoids compression of insulation,
  • Improved thermal bridging,
  • BBA approved.

Note: Channels and Screws are bought separately

Brand: Ancon Model and Size: SD25/300
Delivery Time: 2 - 5 working days
Ancon SD25/300 Channel Wall Ties with a safety ended v drip for 235-259mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. They are placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint..
Get Best Price
Brand: Ancon Model and Size: 225mm
Delivery Time: 2 - 3 working days
225mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31C wall tie is ..
Get Best Price
Brand: Ancon Model and Size: 250mm
Delivery Time: 3 - 5 days
250mm Ancon PPS Movement Tie with Debonding Sleeve is designed to accommodate movement in masonry structures while maintaining structural integrity. This innovative tie features a debonding sleeve that allows for controlled movement between the inner and outer leaves of a wall, effectively reducing ..
Get Best Price
Brand: Ancon Model and Size: 455mm - BFL-7
Delivery Time: 1-3 working days
455mm Ancon Teplo-BFL-7 Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFL-5 Wall Tie has a..
Get Best Price
575mm Ancon Teplo-BF-4 Wall Tie - Basic Wall Tie Type 4
Guide Price
Brand: Ancon Model and Size: 575mm
Delivery Time: 3 - 5 days
575mm Ancon Teplo-BF-4 Wall Tie is a smart black general purpose composite type 3 wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-4 has specialised moulded safety ends which offer improved ..
Guide Price: £5.07
£6.08 inc VAT
Get Best Price
Brand: Ancon Model and Size: 260mm
Delivery Time: 2 - 3 working days
260mm Staifix Resin/Resin Wall Tie is a masonry remedial wall tie for use for tying together two leaves of solid walls. This RR tie is used where mechanical expanders are unusable. Resin is added to both ends. A plastic sieve can be used to retain resin and is particularly useful in perfor..
Get Best Price
