Ancon Teplo-BF-CT-25/350 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Product Code: A1-5588
Delivery Time: 2 - 5 working days
Brand: Ancon (Tech. support: : +44(0)1142381238)
Model: Teplo-BF-CT-25/350

Our ratings on 17-09-2026:

4.8 out of 5

Ask question about this product. For price use 'Add to Quote' button. Checkout

Ancon Teplo-BF-CT-25/350 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Length: 350mm

Open Cavity: 285-309mmmm

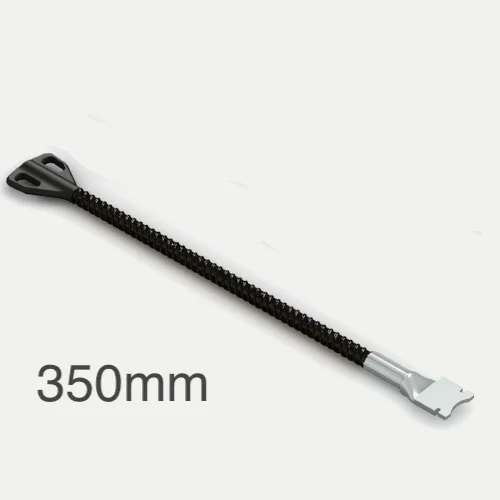

Ancon Teplo-BF-CT-25/350 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 285-309mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations to BS EN ISO 6946, minimising insulation thickness and wall footprint. The unique ribbed shank of this tie provides an effective moisture drip. This channel tie has a profiled stainless steel head at one end shaped to suit Ancon 25/14 channel and is placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint. The moulded safety end is placed into the outer leaf masonry bed joint.

BENEFITS

Quick installation,
Avoids compression of insulation,
Improved thermal bridging,
BBA approved.

Note: Channels and Screws are bought separately

Ancon 25-14 Restraint System.pdf

250mm Ancon PPS Movement Tie with Debonding Sleeve

Brand: Ancon Model: 250mm

Delivery Time: 3 - 5 days

250mm Ancon PPS Movement Tie with Debonding Sleeve

250mm Ancon PPS Movement Tie with Debonding Sleeve is designed to accommodate movement in masonry structures while maintaining structural integrity. This innovative tie features a debonding sleeve that allows for controlled movement between the inner and outer leaves of a wall, effectively reducing ..

Ask question about this product. For price use 'Add to Quote' button. Checkout

Ancon HTSS-100-2PT-W Screws - Fixings for Ancon 25/14 Restraint System to Steel Frame - bag of 100

Brand: Ancon Model: 100mm - bag of 100

Delivery Time: 2 - 5 working days

Ancon HTSS-100-2PT-W Screws - Fixings for Ancon 25/14 Restraint System to Steel Frame - bag of 100

Ancon HTSS-100-2PT-W Screws are used to fix an outer leaf of brickwork through any kind of insulation to a steel frame structure. These screws feature a shaped drill tip of hardened steel that allows installation without pre-drilling. Ancon HTSS-100-2PT-W high thread screws accommodat..

Ask question about this product. For price use 'Add to Quote' button. Checkout

275mm Ancon Staifix HRT4 Stainless Steel Wall Tie - Masonry Light Duty Tie - Type 4 - pack of 250

Brand: Ancon Model: 275mm

Delivery Time: 2 - 3 working days

275mm Ancon Staifix HRT4 Stainless Steel Wall Tie - Masonry Light Duty Tie - Type 4 - pack of 250

275mm Ancon Staifix HRT4 Wall Tie is a low conductivity stainless steel masonry wall tie for use in domestic houses up to 10 metres in height. Wall ties should be pressed down in fresh mortar. They should be surrounded by mortar and they should be installed as the inner leaf is constructed..

£57.11

£68.53 inc VAT

Ask question about this product. For price use 'Add to Quote' button. Checkout

385mm Ancon Teplo-BFR Wall Tie for 250mm Cavity - Type 2 Tie

Brand: Ancon Model: 385mm

Delivery Time: 1-3 working days

385mm Ancon Teplo-BFR Wall Tie for 250mm Cavity - Type 2 Tie

385mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm ..

Ask question about this product. For price use 'Add to Quote' button. Checkout

235mm Ancon Teplo-BFR Wall Tie for 100mm Cavity - Type 1 Tie

Brand: Ancon Model: 235mm

Delivery Time: 1-3 working days

235mm Ancon Teplo-BFR Wall Tie for 100mm Cavity - Type 1 Tie

235mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm ..

Ask question about this product. For price use 'Add to Quote' button. Checkout

275mm Ancon Teplo-BF-2 Wall Tie - General Purpose Type 2

Guide Price

Brand: Ancon Model: 275mm

Delivery Time: 3 - 5 days

275mm Ancon Teplo-BF-2 Wall Tie - General Purpose Type 2

275mm Ancon Teplo-BF-2 Wall Tie is a smart black general purpose composite wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-2 has specialised moulded safety ends which offer improved buildab..

Guide Price: £2.43

£2.92 inc VAT
