Ancon Teplo-BF-CT-25/325 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Product Code: A1-5587
Delivery Time: 2 - 5 working days
Brand: Ancon (Tech. support: : +44(0)1142381238)
Model: Teplo-BF-CT-25/325

Our ratings on 28-08-2026:

4.8 out of 5

Ask question about this product. For price use 'Add to Quote' button. Checkout

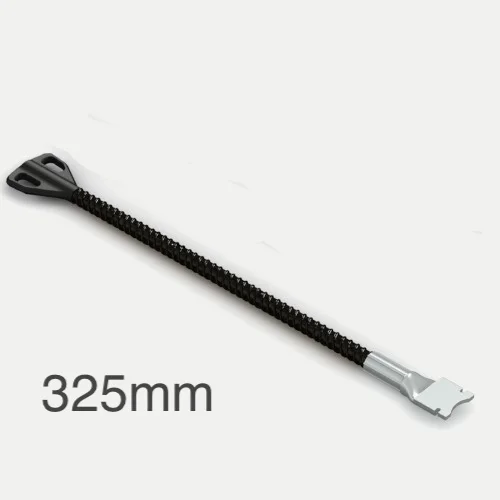

Ancon Teplo-BF-CT-25/325 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Length: 325mm

Open Cavity: 260-284mmmm

Ancon Teplo-BF-CT-25/325 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 260-284mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations to BS EN ISO 6946, minimising insulation thickness and wall footprint. The unique ribbed shank of this tie provides an effective moisture drip. This channel tie has a profiled stainless steel head at one end shaped to suit Ancon 25/14 channel and is placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint. The moulded safety end is placed into the outer leaf masonry bed joint.

BENEFITS

Quick installation,
Avoids compression of insulation,
Improved thermal bridging,
BBA approved.

Note: Channels and Screws are bought separately

Ancon 25-14 Restraint System.pdf

Ancon HTSS-82-2PT-W Screws - Fixings for Ancon 25/14 Restraint System to Steel Frame - bag of 100

Brand: Ancon Model: 82mm - bag of 100

Delivery Time: 2 - 5 working days

Ancon HTSS-82-2PT-W Screws - Fixings for Ancon 25/14 Restraint System to Steel Frame - bag of 100

Ancon HTSS-82-2PT-W Screws are used to fix an outer leaf of brickwork through any kind of insulation to a steel frame structure. These screws feature a shaped drill tip of hardened steel that allows installation without pre-drilling. Ancon HTSS-82-2PT-W high thread screws accommodate ..

Ask question about this product. For price use 'Add to Quote' button. Checkout

179mm Ancon Staifix Timber Frame Tie for 100mm Cavity - Type 6 Tie (pack f 250)

Brand: Ancon Model: STF100BOX

Delivery Time: 1-3 working days

179mm Ancon Staifix Timber Frame Tie for 100mm Cavity - Type 6 Tie (pack f 250)

179mm Ancon Staifix Timber Frame Tie is a cranked tie used to fix brickwork or blockwork to timber-framed structures up to 4 storeys in height. It is a type 6 tie that has been independently tested for use with 15mm OSB SIPS (structural insulated panel) panel. It is supplied with an annular rin..

£127.50

£153.00 inc VAT

Ask question about this product. For price use 'Add to Quote' button. Checkout

Ancon CFS115 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100

Brand: Ancon Model: CFS115

Delivery Time: 2 - 5 working days

Ancon CFS115 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100

Ancon CFS115 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used..

Ask question about this product. For price use 'Add to Quote' button. Checkout

285mm Ancon Teplo-BFR Wall Tie for 150mm Cavity - Type 1 Tie

Brand: Ancon Model: 285mm

Delivery Time: 1-3 working days

285mm Ancon Teplo-BFR Wall Tie for 150mm Cavity - Type 1 Tie

285mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm ..

Ask question about this product. For price use 'Add to Quote' button. Checkout

430mm Ancon Teplo-BFL-7 Wall Tie for 351 - 375mm Cavity

Brand: Ancon Model: 430mm - BFL-7

Delivery Time: 1-3 working days

430mm Ancon Teplo-BFL-7 Wall Tie for 351 - 375mm Cavity

430mm Ancon Teplo-BFL-7 Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFL-5 Wall Tie has a..

Ask question about this product. For price use 'Add to Quote' button. Checkout

300mm Ancon PPS Movement Tie with Debonding Sleeve

Brand: Ancon Model: 300mm

Delivery Time: 3 - 5 days

300mm Ancon PPS Movement Tie with Debonding Sleeve

300mm Ancon PPS Movement Tie with Debonding Sleeve is designed to accommodate movement in masonry structures while maintaining structural integrity. This innovative tie features a debonding sleeve that allows for controlled movement between the inner and outer leaves of a wall, effectively reducing ..
