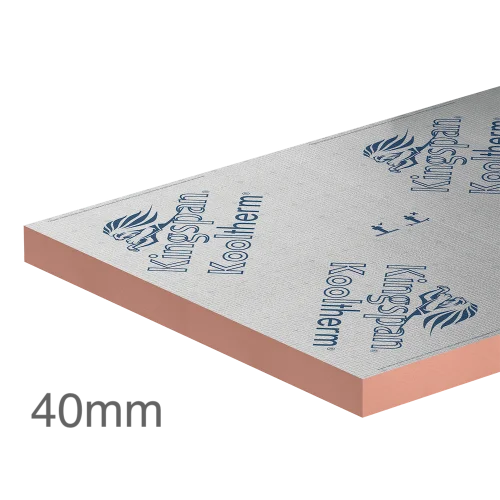

40mm Kingspan Kooltherm K107 Pitched Roof Board (pack of 8)

  • 40mm Kingspan Kooltherm K107 Pitched Roof Board (pack of 8)
  • Product Code: A1-2417
  • Brand: Kingspan
    (tech. support: 01544 388 601)
  • Model and Size: 2400x1200 - 23.04m2
  • Pack Coverage: 23.04m2
  • Delivery Time: 2 - 3 weeks

Product manufactured to order.
Minimum quantity for quotation: 53.
Click here to see available substitutes or request a quotation.
= m2
other thicknesses

= m2

= m2

= m2

= m2

= m2

= m2

= m2

= m2

= m2

= m2

= m2

40mm Kingspan Kooltherm K107 Pitched Roof Board (pack of 8)

Thickness: 40mm
Width: 1200mm
Length: 2400mm
Pack Coverage: 23.04m2
Density: 35kg/m3
Weight/m2: 1.4kg
Weight: 32.26kg
Compressive Strength: 120kPa
Thermal Conductivity: 0.018W/mK
R-Value: 2.2m2K/W

40mm Kingspan Kooltherm K107 Pitched Roof Board is the rafter/joist level insulation comprising a premium performance rigid thermoset phenolic insulation core faced on both sides with a low emissivity composite foil facing. With a higher rated thermal conductivity Kooltherm K107 replaces Kingspan Kooltherm K7. It can be installed at a thinner thickness than the standard PIR insulation board to meet the target U-Value. With a super low thermal conductivity of 0.018 W/m.K, Kingspan K107 is the number one choice when installing roof insulation. The reflective, low emissivity surface improves the thermal resistance of any unventilated cavity adjacent to the board. These insulation boards are to be used in cut to fit roof insulation projects and for use under rafter to eliminate any possible cold bridging through the roof timbers.

CHARACTERISTICS
  • Premium performance rigid thermoset insulation thermal conductivity as low as 0.018 W/m.K
  • Negligible smoke obscuration
  • Class 0 fire rated insulation core
  • Unaffected by air infiltration
  • Resistant to the passage of water vapour
  • Easy to handle and install
  • Ideal for new build and refurbishment
  • Nondeleterious material
  • Manufactured with a blowing agent that has zero ODP and low GWP
APPLICATION
Pitched roofs:
  • Over Rafter Insulation
  • Between Rafter Insulation
  • Between Joist Insulation
  • Between Dwarf Wall Stud Insulation
  • Over Joist Insulation
CERTIFICATION
  • BS / EN ISO 9001: 2008 (Quality Management Systems. Requirements)
  • BS / EN ISO 14001: 2004 (Environmental Management Systems. Requirements)
  • BS / OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements)
  • ISO 50001:2011 (Energy Management Systems. Requirements with guidance for use)
  • Manufactured in accordance with the Harmonized Standard BS EN 13166:2012 (Thermal insulation products for buildings. Factory made phenolic foam (PF) products specification)
  • Certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) Excellent
  • BBA Certificate 16/5299
