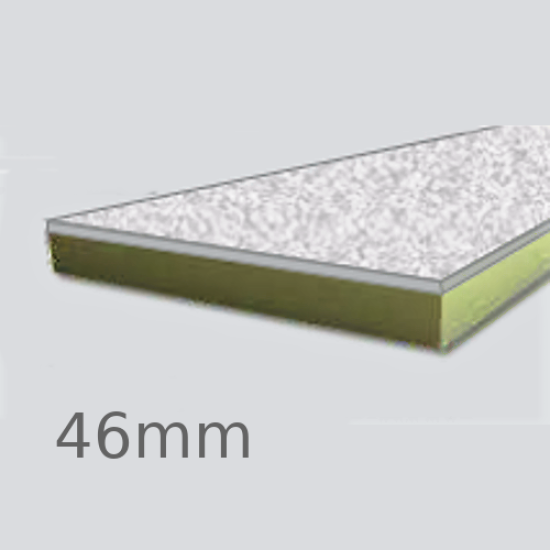

46mm Cellecta Hexatherm XCPL Faced Thermal Laminate Board for Car Park Soffits - Extruded Polystyrene (XPS)

46mm Cellecta Hexatherm XCPL Faced Thermal Laminate Board for Car Park Soffits - Extruded Polystyrene (XPS)

Width: 1200mm
Length: 2400mm
Density: 34kg/m3
Weight/m2: 1.56kg
Weight: 4.5kg
Thermal Conductivity: 0.033W/mK
R-Value: 1.39m2K/W
Compressive Strength: 300kPa

46mm Cellecta Hexatherm XCPL is a high performance extruded polystyrene thermal insulation board bonded to an high impact thermal laminate facing, suitable for car parks and soffits. It combines the benefits of high performance extruded polystyrene with a facing board to produce a composite thermal board to suit a specific application.

Available in two high impact laminates;

  • Option 1: Grey - 6mm cementitious board
  • Option 2: White - 6mm Glasroc multiboard
CHARACTERISTICS
  • Easy to install,
  • Composite board,
  • Smooth high impact facing,
  • Available in two colours: White & Grey,
  • Excellent life-long thermal performance,
  • 100% recyclable,
  • CFC and HCFC free,
  • Closed cell structure,
  • High compressive strength,
  • High thermal performance,
  • Zero ODP & Less than 5 GWP
APPLICATION

Cellecta Hexatherm XCPL is used as  thermal board to suit car park and soffit lining applications.



CERTIFICATION

Manufactured in accordance with BS EN 13374 and tested to BS EN 12267
