106mm Cellecta Hexatherm XCPL Faced Thermal Laminate Board for Car Park Soffits - Extruded Polystyrene (XPS)
106mm Cellecta Hexatherm XCPL Faced Thermal Laminate Board for Car Park Soffits - Extruded Polystyrene (XPS)
- Product Code: A1-1640
- Delivery Time: 2 - 4 days
- Brand: Cellecta (Tech. support: 01634296677)
- Model and Size: 1200x2400mm - 2.88m2
- Weight: 10.38kg
Our ratings on 19-05-2025:
4.8 out of 5
106mm Cellecta Hexatherm XCPL Faced Thermal Laminate Board for Car Park Soffits - Extruded Polystyrene (XPS)
Width: 1200mm
Length: 2400mm
Density: 34kg/m3
Weight/m2: 3.6kg
Weight: 10.38kg
Thermal Conductivity: 0.034W/mK
R-Value: 2.53m2K/W
Compressive Strength: 300kPa

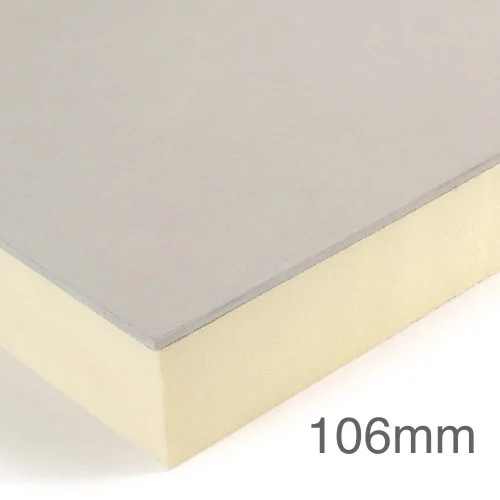

106mm Cellecta Hexatherm XCPL is a high performance extruded polystyrene thermal insulation board bonded to an high impact thermal laminate facing, suitable for car parks and soffits. It combines the benefits of high performance extruded polystyrene with a facing board to produce a composite thermal board to suit a specific application.
- Option 1: Grey - 6mm cementitious board
- Option 2: White - 6mm Glasroc multiboard
CHARACTERISTICS
- Easy to install,
- Composite board,
- Smooth high impact facing,
- Available in two colours: White & Grey,
- Excellent life-long thermal performance,
- 100% recyclable,
- CFC and HCFC free,
- Closed cell structure,
- High compressive strength,
- High thermal performance,
- Zero ODP & Less than 5 GWP
APPLICATION

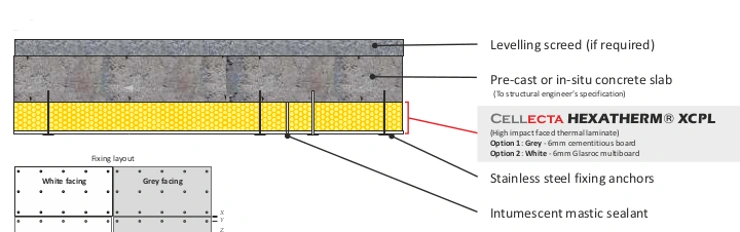

Cellecta Hexatherm XCPL is used as thermal board to suit car park and soffit lining applications.
CERTIFICATION
Manufactured in accordance with BS EN 13374 and tested to BS EN 12267
Car_Park_Soffit_Lining_Thermal_Insulation_Fixed_Underside_Slab_HEXATHERM_XPCL.pdf
