FastFrame Aluminium Adjustable Secret Fix Carrier Bracket for Square Collared Keil Anchors - G-C06602220.80.12

FastFrame Aluminium Adjustable Secret Fix Carrier Bracket for Square Collared Keil Anchors - G-C06602220.80.12
  • Product Code: A1-6829
  • Delivery Time: 7 - 10 days
  • Brand: Plastestrip (Tech. support: 0172674771)
  • Model: G-C06602220.80.12
Our ratings on 18-11-2026:
Google My Business Reviews
4.8 out of 5
To GET BEST PRICE for this product only fill below:
Need a quote for more products? and continue browsing to find other materials needed.

FastFrame Aluminium Adjustable Secret Fix Carrier Bracket for Square Collared Keil Anchors - G-C06602220.80.102

Length: 80mm
Width: 22mm
Height: 68mm
Thickness: 3mm

FastFrame Aluminium Standard Secret Fix Carrier Bracket for Square Collared Keil Anchors - G-C06602220.80.12 is a discrete aluminium extrusion designed to provide a secure, adjustable, and invisible mechanical connection. It is typically used with high-end facade materials such as High-Pressure Laminate (HPL), ceramic, stone, or fibre cement, where a clean architectural finish is paramount. The Carrier Bracket (often referred to as a Panel Hanger or Clip) is the precision-engineered component that is fixed directly to the rear of the cladding panel. The panels are simply lifted and hooked onto the horizontal carrier rail.

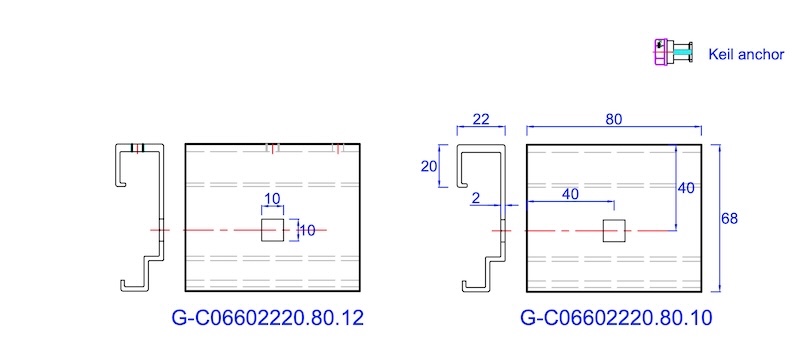

with square keil undercut anchor

CHARACTERISTICS

  • The bracket features a specific profile designed to "seat" perfectly into the groove of the horizontal Carrier Rail. This geometry ensures that once the panel is hung, it is locked against wind suction forces.
  • Extruded from 6063 T6 aluminium, providing the structural rigidity necessary to support the weight of heavy panels while maintaining a lightweight profile.
  • Include an adjustment screw on the panel hangers. This allows installers to fine-tune the height of each panel to the millimetre after it has been hung, ensuring perfectly aligned horizontal joints.
  • By using multiple brackets across the back of a single panel, the dead load is distributed evenly. This prevents localised stress points that can lead to cracking in brittle materials like large-format ceramic tiles.
  • Provides a seamless, high-end architectural finish with no visible fastener heads.
  • Once the final panel in a run is installed, the brackets are often locked in place with a "locking screw" or "stop," preventing the panels from being lifted or removed by unauthorised persons.
