Plastestrip Galvanised Steel C-Channel - ST/CH/30/135 - 3m length
Plastestrip Galvanised Steel C-Channel - ST/CH/30/135 - 3m length
- Product Code: A1-6801
- Delivery Time: 7 - 10 days
- Brand: Plastestrip (Tech. support: 0172674771)
- Model: ST/CH/30/135 - 3m length
Our ratings on 24-07-2026:
4.8 out of 5
Plastestrip Galvanised Steel C-Channel - ST/CH/30/135 - 3m length

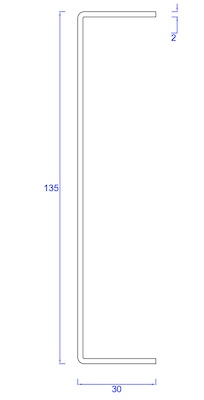

Length: 3000mm
Width: 135mm
Height: 30mm
Thickness: 2mm
Fire Rating (Reaction to Fire): A1(Non-combustible)

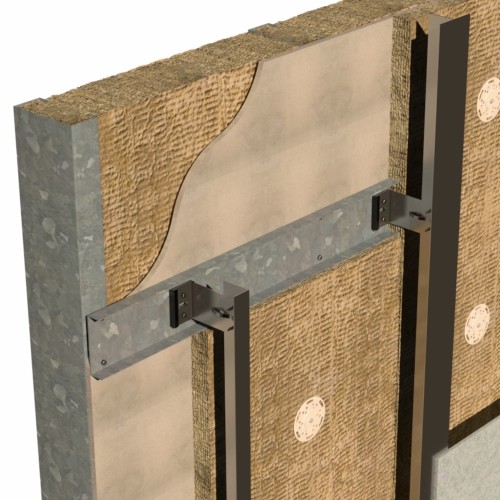

Plastestrip Galvanised Steel C-Channel - ST/CH/30/135 is a robust, open-faced profile designed to provide a flat, recessed mounting track for the brackets. These horizontal support profiles act as a structural "bridge" between building studs. By installing these horizontally across the face of the studs, you create a continuous mounting surface. This allows the FastFrame or ThermaFrame "helping hand" brackets to be positioned exactly where the facade design requires them, rather than being restricted to the fixed centres of the building's internal frame. The Galvanised Steel C-Channel is a universal component used across both the FastFrame and ThermaFrame systems.
CHARACTERISTICS
- Manufactured from S275 structural-grade galvanised steel.
- A 135mm wide channel specifically sized to provide the perfect mounting footprint for a single FastFrame or ThermaFrame helping-hand bracket.
- Allows the "helping hand" brackets to be positioned exactly where the facade design requires them.
- A universal component used across both the FastFrame and ThermaFrame systems.
