PlastiClad Aluminium Box Style External Corner v - For Any 12mm Panel - 3055mm Length
PlastiClad Aluminium Box Style External Corner v - For Any 12mm Panel - 3055mm Length
- Product Code: A1-6730
- Delivery Time: 7 - 10 days
- Brand: Plastestrip (Tech. support: 0172674771)
- Model: AL/113
Our ratings on 05-01-2026:
4.8 out of 5
PlastiClad Aluminium Box Style External Corner AL/113 - For Any 12mm Panel - 3055mm Length
Length: 3055mm
Thickness: 1.1mm

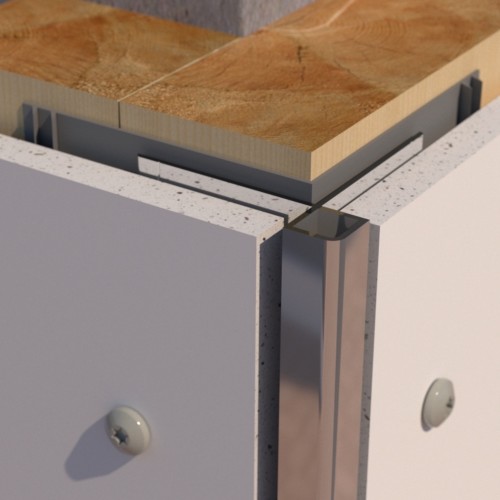

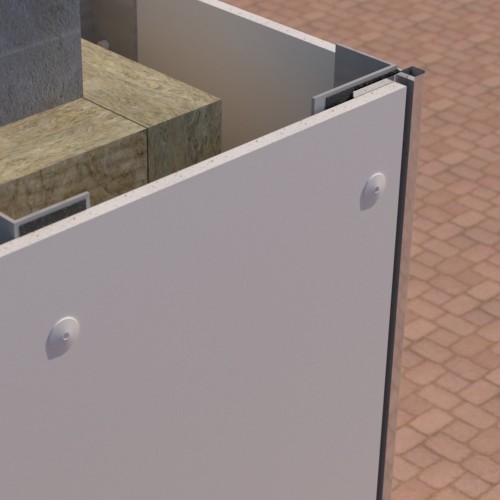

Plasticlad Aluminium Box Style External Corner AL/113 is a heavy-duty, high-specification trim designed to provide a durable and aesthetically superior finish where cladding panels meet at an outward-facing (external) corner. It is typically specified for environments where strength, resistance to impact, and a long lifespan are paramount.
This trim is extruded from high-grade aluminium and is distinguished by the manufacturer’s rigorous finishing process:
- Made from 6063 - T6 Aluminium.
- Unlike many standard trims on the market, Plasticlad ensures a high quality and durable finish by applying a polyester powder coating to all its aluminium profiles and fixings. This process provides a tougher, longer-lasting surface than standard paint or anodising, offering exceptional resistance to scratching, fading, and chemical degradation.

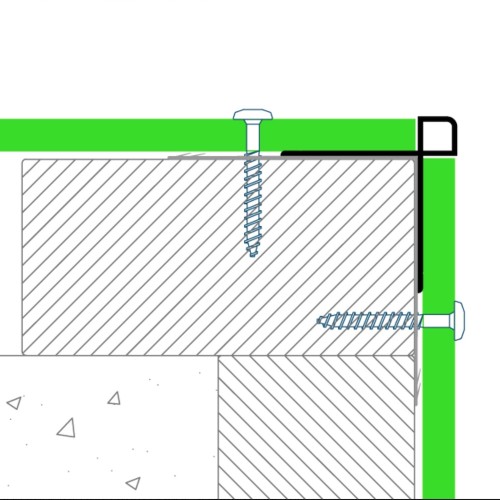

- While maintaining the substantial presence of a 'Box' style, the profile features a slightly rounded front edge. This design element softens the visual impact of the corner, making it less aggressive than a perfectly sharp 90º angle, and crucially, improving safety by reducing sharp edges in public or high-traffic areas.
- Available in 28 RAL colours.
- All stock powders are 80 – 85% gloss value also known as full gloss.
Plastestrip-Aluminium-6063-2-data-sheet.pdf
