PlastiClad Aluminium Vertical Joint AL/TP25 for Weatherboard Systems - 3000mm Length

PlastiClad Aluminium Vertical Joint AL/TP25 for Weatherboard Systems - 3000mm Length
  • Product Code: A1-6740
  • Delivery Time: 7 - 10 days
  • Brand: Plastestrip (Tech. support: 0172674771)
  • Model: AL/TP25
Our ratings on 16-11-2026:
Google My Business Reviews
4.8 out of 5
Loading...

Available Options

To GET BEST PRICE for this product only fill below:
Need a quote for more products? and continue browsing to find other materials needed.

PlastiClad Aluminium Vertical Joint AL/TP25 for Weatherboard Systems - 3000mm Length

Length: 3000mm
Thickness: 1mm

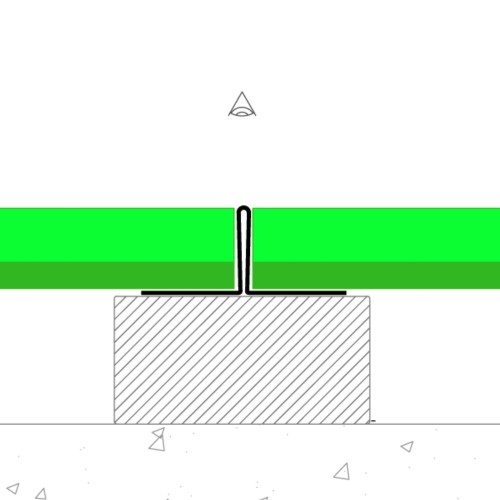

PlastiClad Aluminium Vertical Joint AL/TP25 is a high-performance H-profile trim specifically designed for lapped weatherboard cladding systems. It provides a structured, weathertight, and aesthetically pleasing solution for joining two runs of weatherboard planks end-to-end on a continuous flat wall.

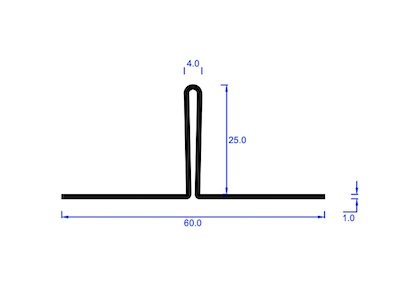

vertical joint weatherboards cross section

This trim is extruded from high-grade aluminium and is distinguished by the manufacturer’s rigorous finishing process:

  • Made from 1050 Aluminium.
  • Unlike many standard trims on the market, Plasticlad ensures a high quality and durable finish by applying a polyester powder coating to all its aluminium profiles and fixings. This process provides a tougher, longer-lasting surface than standard paint or anodising, offering exceptional resistance to scratching, fading, and chemical degradation.

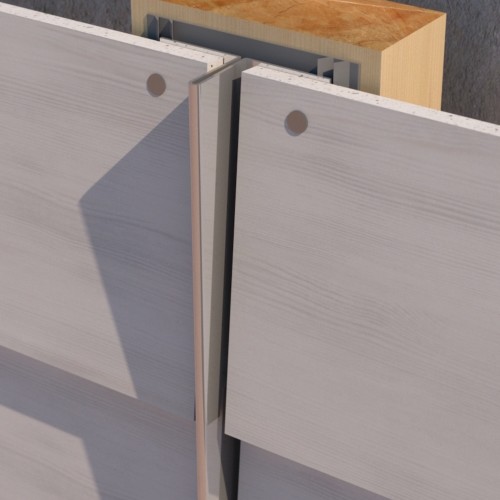

  • The profile features a central spine with two deep, mirrored channels on either side. These channels are designed to house the cut ends of the weatherboard planks, allowing them to expand and contract naturally while remaining fully encased.
  • Available in 28 RAL colours.
  • All stock powders are 80 – 85% gloss value also known as full gloss.
