PlastiClad Aluminium Internal Corner AL/225 For Weatherboard Systems - 3000mm Length

PlastiClad Aluminium Internal Corner AL/225 For Weatherboard Systems - 3000mm Length
  • Product Code: A1-6739
  • Delivery Time: 7 - 10 days
  • Brand: Plastestrip (Tech. support: 0172674771)
  • Model: AL/225
Our ratings on 20-11-2026:
Google My Business Reviews
4.8 out of 5
Loading...

Available Options

To GET BEST PRICE for this product only fill below:
Need a quote for more products? and continue browsing to find other materials needed.

PlastiClad Aluminium Internal Corner AL/225 For Weatherboard Systems - 3000mm Length

Length: 3000mm
Thickness: 1mm

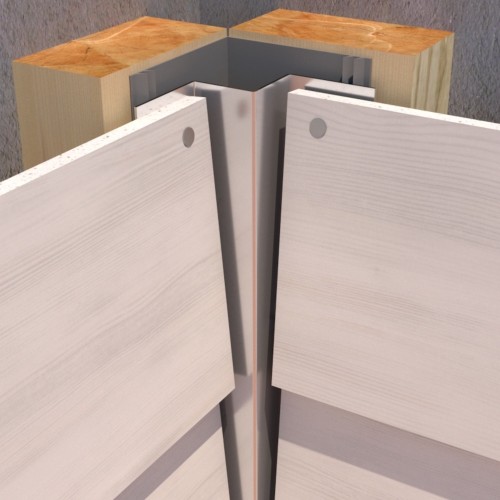

PlastiClad Aluminium Internal Corner AL/225 For Weatherboard Systems is a high-specification trim designed specifically for lapped weatherboard cladding installations (such as fibre cement or composite timber). It provides a secure, tidy, and weathertight solution for areas where two clad walls meet at an inward-facing 90º angle, such as in an "L-shaped" building plan or at a recessed entrance.

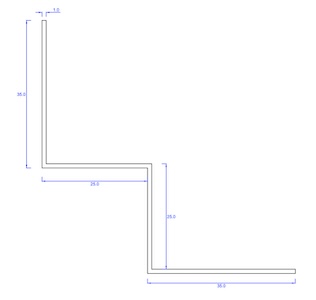

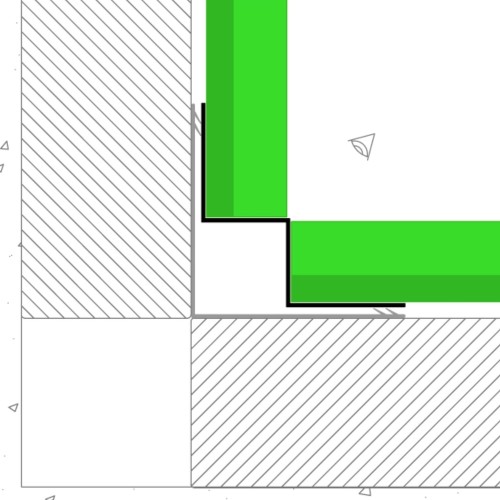

internal corner weatherboards cross section

This trim is extruded from high-grade aluminium and is distinguished by the manufacturer’s rigorous finishing process:

  • Made from 1050 Aluminium.
  • Unlike many standard trims on the market, Plasticlad ensures a high quality and durable finish by applying a polyester powder coating to all its aluminium profiles and fixings. This process provides a tougher, longer-lasting surface than standard paint or anodising, offering exceptional resistance to scratching, fading, and chemical degradation.
  • The internal corner profile features deep, stepped channels on both faces of the inward angle.
  • These channels are specifically engineered to accept the cut ends of the lapped weatherboard planks, hiding the raw edges and ensuring a clean, recessed appearance.
  • Available in 28 RAL colours.
  • All stock powders are 80 – 85% gloss value also known as full gloss.
