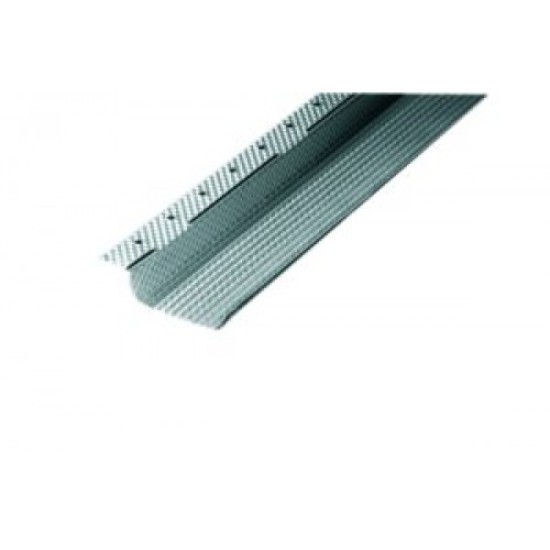

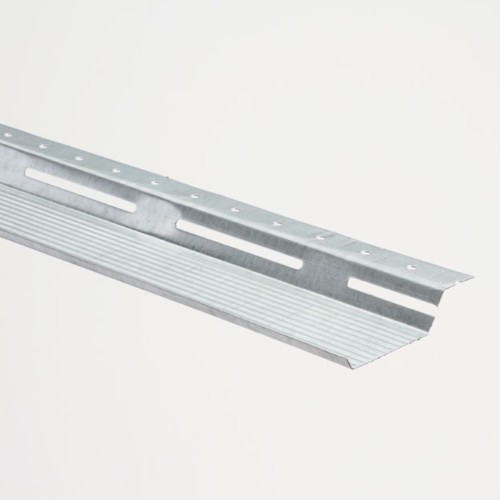

RB565 Metal Resilient Bar Speedline

• The Resilient Bar is fixed at right angles to the joists at 450mm maximum centres for single or double applications
• When 2400mm board is being used the Resilient Bar will need to be reduced to 400mm centres
• To ensure maximum sound insulation performance, screws fixing the plasterboard must not be in contact with the joists
• When installing a dual layer of boards, all joints in the second layer must be staggered in relation to those of the first layer
• Mineral wool insulation can be included in the floor cavity to improve acoustic performance
• The Resilient Bar can easily be cut with tinsnips or hacksaw
