160mm Aluminium Vented Base Track - for steel construction.

160mm Aluminium Vented Base Track - for steel construction.
Guide Price
160mm Aluminium Vented Base Track - for steel construction.
Guide Price: £24.50 (£29.40 inc VAT)
20 or more £23.63 (£28.36 inc VAT)
30 or more £22.75 (£27.30 inc VAT)
40 or more £21.88 (£26.26 inc VAT)
  • Product Code: A1-2909
  • Delivery Time: 1 - 2 days
  • Brand: Wemico
  • Model and Size: 90916S
Our ratings on 09-06-2025:
Google My Business Reviews
4.8 out of 5
Show other widths

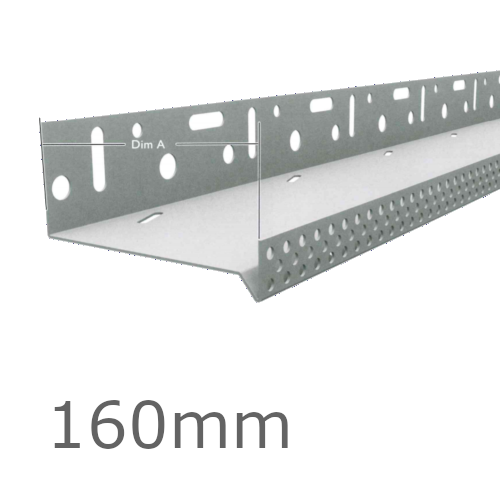

160mm Aluminium Vented Base Track - for steel construction.

Thickness: 0.8mm
Width: 160mm
Length: 2500mm
dim 'A': 163mm

160mm box shaped Aluminium Vented base profile for external thermal insulation board, created to match the new regulations that demand different air flow rates within cavities of steel frame and timber frame structures. Connectors and render clips are also available to suit this product.



Note: Please choose for timber frame or steel frame structures.

Ventilation rate per meter length for timber frame is 735.07mm2.

Ventilation rate per meter length for steel frame is 143.14mm2.
