170mm Aluminium Vented Base Track - for steel construction.

170mm Aluminium Vented Base Track - for steel construction.
Guide Price
170mm Aluminium Vented Base Track - for steel construction.
Guide Price: £24.50 (£29.40 inc VAT)
20 or more £23.63 (£28.36 inc VAT)
30 or more £22.75 (£27.30 inc VAT)
40 or more £21.88 (£26.26 inc VAT)
  • Product Code: A1-2910
  • Delivery Time: 1 - 2 days
  • Brand: Wemico
  • Model and Size: 90917S
Our ratings on 30-06-2025:
Google My Business Reviews
4.8 out of 5
Show other widths

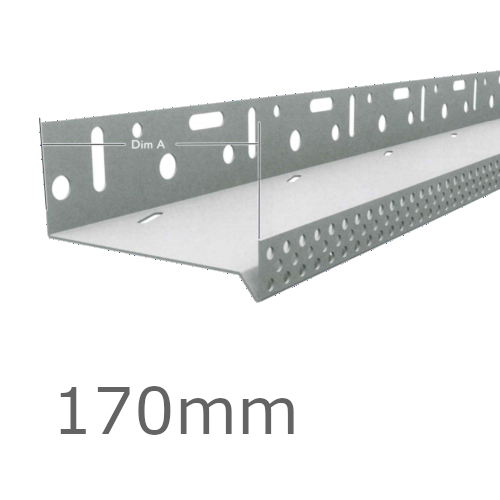

170mm Aluminium Vented Base Track - for steel construction.

Thickness: 0.8mm
Width: 170mm
Length: 2500mm
dim 'A': 173mm

170mm box shaped Aluminium Vented base profile for external thermal insulation board, created to match the new regulations that demand different air flow rates within cavities of steel frame and timber frame structures. Connectors and render clips are also available to suit this product.



Note: Please choose for timber frame or steel frame structures.

Ventilation rate per meter length for timber frame is 735.07mm2.

Ventilation rate per meter length for steel frame is 143.14mm2.



50mm Perforated Full System Base Bead
Guide Price
Brand: Wemico Model and Size: WE65N
Delivery Time: 1 - 2 days
50mm Perforated Full System Base Bead Profile made from powder coated galvanised steel  with PVC nosing which will provide additional protection against abrasion and corrosion. This product can also be used as a window/door head profile. External and Internal Corners and additional sizes made t..
Guide Price: £18.72
£22.46 inc VAT
Get Best Price
Brand: Wemico Model and Size: 9400
Delivery Time: 1 - 2 days
Aluminium Facade Corner Profile Without Covered Cutting Edges - Profile 9400 length of 2.5m. Corner profiles cover the cutting edges of the facade boards and form a clean, precise edge. Vertical corner profiles must be fastened at one fixed point at the top. If conditions require multiple faste..
Get Best Price
50mm WEC 771 Verge Trim Profile - 2.5m length
Guide Price
Brand: Wemico Model and Size: WEC 771 - 50mm
Delivery Time: 1 - 2 days
50mm WEC 771 Verge Trim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured in 1.2..
Guide Price: £19.02
£22.82 inc VAT
Get Best Price
120mm WEC 771 OverTrim Profile - 2.5m length
Guide Price
Brand: Wemico Model and Size: WEC 771OT
Delivery Time: 1 - 2 days
120mm WEC 771 Verge OverTrim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured i..
Guide Price: £24.82
£29.78 inc VAT
Get Best Price
310mm Aluminium Window Sill Extensions WEC 751 (with full end caps - pair) - 2.5m Length.
Guide Price
Brand: Wemico Model and Size: WEC751/285 - 310mm
Delivery Time: 1 - 2 days
310mm Window Sill Extension WEC 751 is suitable for most conditions requiring the weathering of External Wall Insulation Systems and Rendering. Aluminium White Coated with peel-off low tack film to protect the section during transportation and fixing on-site. Jointing pieces to suit any section can ..
Guide Price: £42.65
£51.18 inc VAT
Get Best Price
130mm Soffit Flashing and Window Sill Extensions (with full end caps-pair) - 2.5m Length. 130mm Soffit Flashing and Window Sill Extensions (with full end caps-pair) - 2.5m Length.
Guide Price
Brand: Wemico Model and Size: WEC741/130
Delivery Time: 1 - 2 days
130mm Aluminium Soffit Flashing and Window Sill Extensions suitable for most conditions requiring the weathering of External Wall Insulation Systems and Rendering. Aluminium White Coated with peel-off low tack film to protect the section during transportation and fixing on-site. ..
Guide Price: £29.73
£35.68 inc VAT
Get Best Price
This product is listed in the following categories and systems (click to show).
