425mm Ancon Teplo-BF-2 Wall Tie - General Purpose Type 2

425mm Ancon Teplo-BF-2 Wall Tie - General Purpose Type 2
Guide Price
425mm Ancon Teplo-BF-2 Wall Tie - General Purpose Type 2
Guide Price: £4.20 (£5.04 inc VAT)
  • Product Code: A1-3653
  • Delivery Time: 3 - 5 days
  • Brand: Ancon
  • (Tech. support: : +44(0)1142381238)
  • Model and Size: 425mm
Our ratings on 27-06-2025:
Google My Business Reviews
4.8 out of 5
Show other sizes

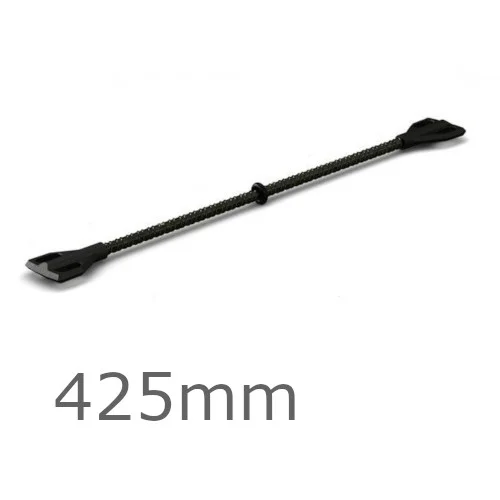

425mm Ancon Teplo-BF-2 Wall Tie - General Purpose Type 2

Length: 425mm

425mm Ancon Teplo-BF-2 Wall Tie is a smart black general purpose composite wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-2 has specialised moulded safety ends which offer improved buildability and mortar bond strength. The enhanced bond makes it ideal for use in slow drying lime mortars. The Teplo-BF-2 range is BBA approved and can be used in line with NHBC standards. This tie suitable for domestic and small commercial buildings. Suitable for flat sites where the basic wind speed is up to 31m/s and altitude  is not more than 150m above sea level. This tie can be used only up to 15m height. Recommended design embedment of the tie is between 62.5mm and 75mm in each leaf.



Fixing density

  • 2.5 ties/m2
  • 3-4 ties/m2
  • at unbonded edges

CHARACTERISTICS
  • Masonry-to-masonry wall tie,
  • Can be used up to 15m height,
  • General purpose type 2 wall tie,
  • Suitable for cavities of 276-300mm,
  • Movable 'O' ring drip to prevent water crossing the cavity,
  • BBA Approved and can be used in line with NHBC standards.

Brand: Ancon Model and Size: 200mm
Delivery Time: 2 - 3 working days
200mm Ancon ST1 Wall Tie low conductivity heavy duty stainless steel wall tie that meets the performance requirement of Approved Document E for use in external masonry walls. The enhanced bond makes it ideal for use in slow drying lime mortars. Wall ties should be pressed down in fresh mortar. They ..
£100.41
£120.49 inc VAT
Add to Cart
Brand: Ancon Model and Size: 260mm
Delivery Time: 1-3 working days
260mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm ..
Get Best Price
Brand: Ancon Model and Size: 240mm
Delivery Time: 2 - 3 working days
240mm Ancon Teplo-R Wall Tie is a remedial wall tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It is a plain-ended basalt fibre wall ..
Get Best Price
Brand: Ancon Model and Size: 175mm
Delivery Time: 2 - 3 working days
175mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31 wall tie is s..
Get Best Price
Brand: Ancon Model and Size: CFS302
Delivery Time: 2 - 5 working days
Ancon CFS302 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used..
Get Best Price
290mm Ancon Teplo-L-Tie - 7mm diameter
Guide Price
Brand: Ancon Model and Size: 290mm - 7mm
Delivery Time: 3 - 5 days
290mm Ancon Teplo-L-Tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It has stainless steel upstand with a 7mm fixing hole for a second..
Guide Price: £3.63
£4.36 inc VAT
Get Best Price
