Insulated Render Systems

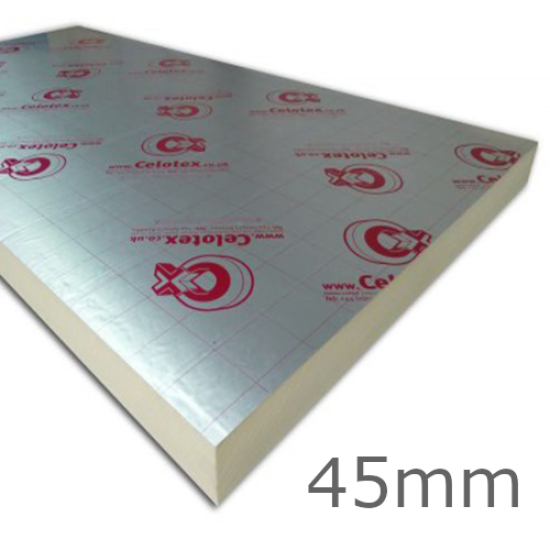

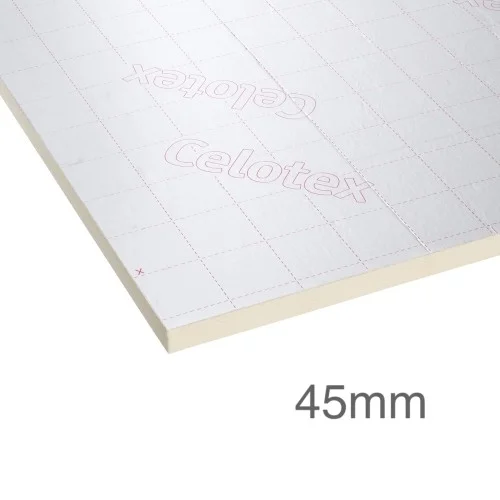

45mm Celotex TB4000 PIR Insulation Board - TB4045

45mm Celotex TB4000 PIR Insulation Board - TB4045
Rate this product
45mm Celotex TB4000 PIR Insulation Board - TB4045
  • Product Code: A1-116
  • Delivery Time: 1-3 working days
  • Brand: Celotex (Tech. support: 01473820850)
  • Model: 1200x2400mm - 2.88m2
  • Weight: 5.44kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 05-08-2026:
Google My Business Reviews
4.8 out of 5
Ask question about this product. For price use 'Add to Quote' button.
To GET BEST PRICE for this product only fill below:
Send for Quotation
Need a quote for more products? and continue browsing to find other materials needed.

45mm Celotex TB4000 PIR Insulation Board - TB4045

Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 42kg/m3
Weight/m2: 1.89kg
Weight: 5.44kg
Compressive Strength: 120kPa
Thermal Conductivity: 0.023W/mK
R-Value: 2m2K/W

Celotex TB4045 is targeted at cut-to-fit applications between rafters or joists and enables users to achieve lower U-values with a single layer of insulation than has previously been possible. TB4012 is also appropriate for use in floors and walls. With low emissivity foil facings, TB4012 is manufactured from rigid polyisocyanurate (PIR) using a blend of blowing agents that have zero ozone depletion potential (zero ODP) and low global warming potential (GWP).

Note:

  • Would also be known as TB3045 from January 2018.

APPLICATIONS

  • Pitched Roofs
  • Flat Roofs
  • Solid Masonry Walls
  • Timber Framed & Steel Framed Systems
  • Floors
CHARACTERISTICS
  • Specifically designed to eliminate thermal bridges
  • The thinnest PIR insulation
  • Standard board size of 1200mm x 2400mm
  • Easy to cut and shape
  • Low emissivity foil facings giving improved thermal insulation
  • High performance within cavity air spaces
  • Long-term energy savings for buildings
CERTIFICATION
  • CE marking compliance to BS EN 13165
  • Manufactured in accordance with quality management system ISO 9001 and environmental management system ISO 14001
  • Achieves an A+ rating when compared to the BRE Green Guide 2008
