Hush-Batten 55 - 1800mm length

Hush-Batten 55 - 1800mm length

Hush-Batten 55 is a resilient composite batten that facilitates the construction of a service void while simultaneously delivering excellent impact sound reduction between separating floors. This batten is manufactured from superior quality timber, which provides robust structural support. Integrated onto its underside is a highly resilient acoustic layer, specifically Hushfelt. This combination ensures long-lasting support for floating timber or chipboard floors by effectively decoupling them from the structural sub-floor. The resilient Hushfelt layer absorbs impact energy from footfall and other sources, preventing direct transmission of vibrations into the building's structure. By creating a controlled service void, Hush-Batten 55 allows for the discreet routing of pipes, cables, and other utilities, while its primary function as an acoustic isolator ensures enhanced sound insulation. When used as part of a comprehensive sound insulation system for separating floors, it consistently helps in achieving excellent acoustic results and compliance with relevant Building Regulations.

CHARACTERISTICS

• Resilient composite acoustic batten.
• Can be laid over timber or concrete floors.

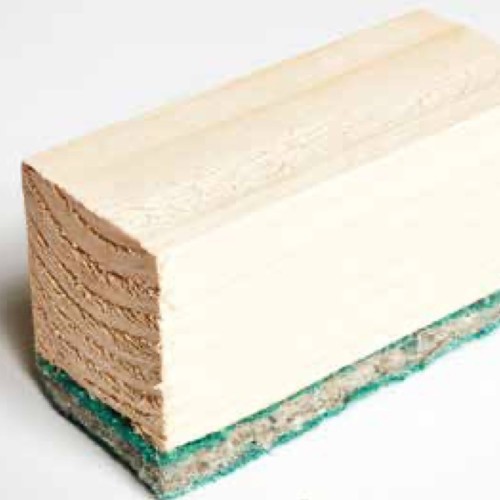

• Comprises of 45mm x 45mm x 1800mm long treated timber and the 10mm Hushfelt resilient layer.
• Overall nominal depth 55mm.
• Enables the construction of a service void.
• Reduces impact sound transmission between separating floors.
• Provides long-lasting support for floating floors.
• Facilitates service integration while significantly improving acoustic performance.
• Provides a 50mm void for services over the floor structure.

APPLICATION

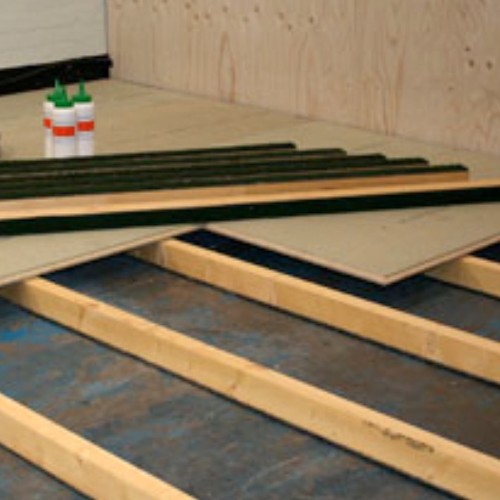

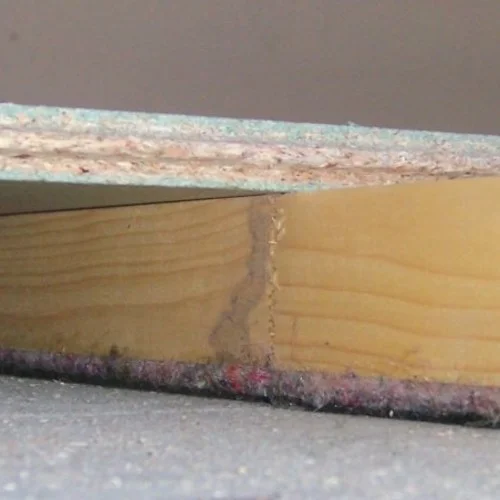

• Designed for use under floating timber or chipboard floors.
• Used as part of a sound insulation system for separating floors.
• Suitable for both new build and refurbishment projects.
