140mm Unilin FR/MG Flat Roof Board - pack of 3

140mm Unilin FR/MG Flat Roof Board - pack of 3
140mm Unilin FR/MG Flat Roof Board - pack of 3
Guide Price
140mm Unilin FR/MG Flat Roof Board - pack of 3
140mm Unilin FR/MG Flat Roof Board - pack of 3
140mm Unilin FR/MG Flat Roof Board - pack of 3
Guide Price: £123.78 (£148.54 inc VAT)
Price per m2: £28.65/m2 (£34.38 inc VAT)
  • Product Code: A1-5286
  • Delivery Time: 3 - 5 days
  • Brand: Unilin (prev. Xtratherm)
  • Model and Size: 1200mm x 1200mm - 4.32m2
  • Weight: 18.14kg
Our ratings on 30-06-2025:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

140mm Unilin FR/MG Flat Roof Board - pack of 3

Length: 1200mm
Width: 1200mm
Thickness: 140mm
Pack Quantity: 3
Board Coverage: 1.44m2
Pack Coverage: 4.32m2
Density: 30kg/m3
Weight/m2: 4.2kg
Weight: 18.14kg
Thermal Conductivity: 0.024W/mK
R-Value: 5.83m2K/W
Compressive Strength: 150kPa

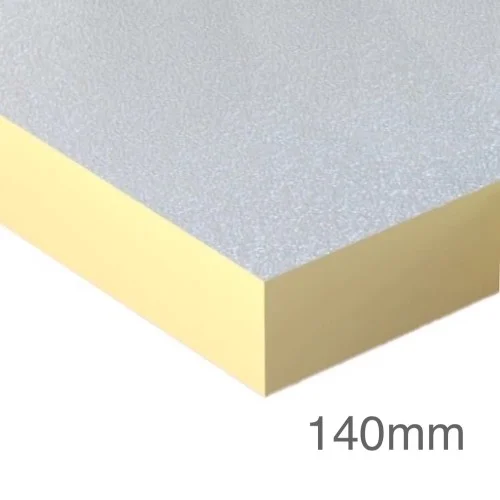

140mm Unilin FR/MG is a high performance PIR core with mineral coated glass facers suitable for use below single ply waterproofing systems and partially bonded built-up felt. It is compatible with adhesively bonded single ply roofing membranes laid on mechanically fixed or adhered boards.

APPLICATION
  • Rooftop decks subject to maintenance traffic,
  • Below most single-ply fully adhered and mechanically fixed roof membrane systems or loose laid ballasted roofing systems.
CHARACTERISTICS
  • High Thermal Performance,
  • Both sides coated with mineral coated glass facers,
  • Suitable for full bonding with approved adhesive systems,
  • Compatible with adhesively bonded single-ply roofing membranes laid on mechanically fixed boards.
CERTIFICATION
